| Stockcode | : | 658355 |
| Type | : | CNC Lathes |
| Subtype | : | Turning Centres |

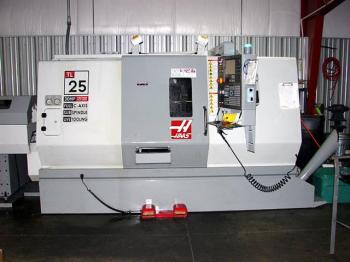

| Manufacturer | : | HAAS |
| Model | : | TL-25 |
| Year | : | 2007 |
| Price | : | P.O.A. |
| Description | : | |
|
SWING DIA OVER FRONT APRON: 30.0" SWING DIA OVER CROSS SLIDE: 14.5" CHUCK SIZE: 12.0" STANDARD BAR CAPACITY: 3.0" BETWEEN CENTERS: 39.0" MAX CUTTING DIAMETER: 16.0" MAX CUTTING LENGTH: 34.0" MAX SPEED: 3,400 RPM MAX POWER RATING: 30 HP TORQUE W/OPTIONAL TRANSMISSION: 850FT-LB@250RPM NUMEBR OF TOOLS: 12 WEIGHT: 16,000 LBS POWER REQUIREMENTS: 28 KVA LIVE TOOLING SPEED DRIVE HORSEPOWER (PEAK): 0-3000 RPM LIVE TOOLING DRIVE HORSEPOWER (PEAK): 5 HP 220 VOLT EQUIPPED WITH: AUTO AIR BLAST LIVE TOOLING AND C-AXIS WITH HYBRID TURRET CHIP AUGER HIGH INTENSITY LIGHTING PARTS CATCHER COLLET CHUCK RADIAL SPEEDER HEAD 2007 HAAS BRUSHLESS MAGAZINE BAR FEEDER | ||
