| Stockcode | : | 658354 |
| Type | : | CNC Lathes |
| Subtype | : | Turning Centres |
| Manufacturer | : | HAAS |

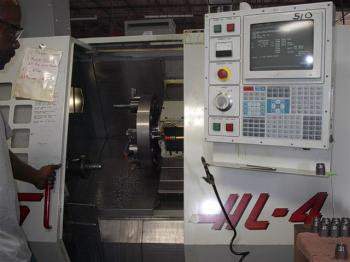

| Model | : | HL-4 |
| Year | : | 1997 |
| Price | : | P.O.A. |
| Description | : | |
|
SWING (DIA.) OVER FRONT APRON: 24" OVER CROSS SLIDE: 9.5" CAPACITIES CHUCK SIZE: 10" BAR CAPACITY MAX.: 2.5" BETWEEN CENTERS: 39" MAX. CUTTING DIAMETER: 14.5" MAX. CUTTING LENGTH: 34" SPINDLE MAX. RPM: 3400 RPM (GEARBOX) TORQUE FT-LBS @ RPM: 283 @ 850 H/P PEAK: 30 CONT./ 40 PEAK SPINDLE NOSE: A2-6 SPINDLE BORE: 3" DIA. DRAW TUBE BORE: 2.56" DIA. TRAVELS & FEEDRATES X-AXIS: 11.30" Z-AXIS: 34" AXIS MOTOR'S MAX. THRUST: 3400 LBS RAPIDS – AC BRUSHLESS: 710 IPM TAILSTOCK TAPER: MT4 TRAVEL: 33.5" THRUST: 300 TO 1500 LBS TURRET# OF TOOLS: 12 OD VS ID TOOLS: ANY COMBINATION TOOL HOLE IN TURRET: 2" TOOL SIZE OD TURNING: ¾" & 1" TOOL HOLDER BORES: .500", .750", 1", 1.25", 1.50", 1.75", 2" BORE BAR REAR CLEARANCE: 4.25" FROM TURRET FACE INDEX TIME ONE TOOL: 1 SECOND MISCELLANEOUS WEIGHT, APPROX.: 14,000 LBS POWER REQUIRED: 26 KVA VOLTS/PHASE: 200 – 250 VAC, 3 PH, 60 CYC COOLANT US GALLONS: 50 AIR REQUIRED: 3 SCFM @ 100 PSI SIZE, APPROX.: 6.5' H X 7' W X 11.5' L EQUIPPED WITH: HAAS CNC CONTROL WITH FLOPPY DISC DRIVE, QUICK CODE, & RIGID TAP CHIP CONVEYOR 10" 3-JAW KITAGAWA CHUCK TOOL PRESETTER TAILSTOCK | ||
