| Stockcode | : | 672665 |
| Type | : | CNC Lathes |
| Subtype | : | Turning Centres |

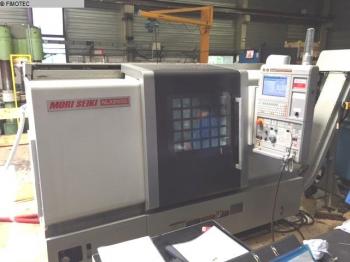

| Manufacturer | : | MORI SEIKI |
| Model | : | NLX 2500/700 |
| Year | : | 2012 |
| Price | : | P.O.A. |
| Description | : | |
|
turning diameter 356 mm
turning length 705 mm control MSX-850 III MAPPS x-axis 260 mm z-axis 795 mm Main spindle: power capacity - main spindel 18,5/15 kW Speed Mainspindle 3300 min/-1 spindle bore 91 mm spindle nose JIS A2-8 chuck Kitagawa B-212A8 mm max. chuck pressure 3,1 MPa turret: number of toolpositions 12 pos. Shank diameter 50 mm Shank height for square tool 25 mm turret change time 0,25 sec. Tailstock: tailstock 734 mm dia. of quill 80 mm feed: rapid power traverse in X-and Z direction 30 m/min rapid travel tail stock 7 m/min total power requirement 27,6 kW weight of the machine ca. 5,8 t dimensions of the machine ca. 3,1 x 2 x 2,2 m Accessories Documents Chip conveyor Coolantsystem Signal-Light Additional information Mori Seiki NL 2500/700 cnc lathe - no CE mark | ||
| View all |
|
MORI SEIKI (54) NLX 2500/700 (1) CNC Lathes (382) Turning Centres (337) |
France
