| Stockcode | : | 671570 |
| Type | : | CNC Lathes |
| Subtype | : | Turning Centres |

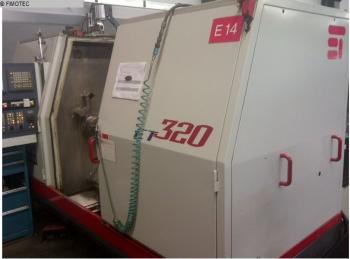

| Manufacturer | : | ERNAULT TOYODA |
| Model | : | ET 320 |
| Year | : | 2000 |
| Price | : | P.O.A. |
| Description | : | |
|
control FANUC 21 T 21 T
centre height 330 mm turning length 775 mm swing diameter over slide rest 320 mm greates pass round over bed 450 mm diameter of spindle flange 140 H mm spindle diameter in front bearing 100 mm spindle bore 86 mm hollow spindle diameter 72 mm max. torque on the spindle 150 Nm longitudinal stroke 850 mm chucking diameter max. 260 mm face stroke 240 tailstock quill diameter 100 mm tailstock quill taper MT 4 tailstock travel 80 mm feeds - longitudinal 0,5 - 10000 mm/min feeds - cross 0,5 - 1000 mm/min rapid travel - longitudinal/face 30 m/min power feed longitudinal 8000 N power feed coss 5000 N thread pitch max. 100 mm Turning Speed - Range 1 20 - 1250 U/min. spindle turning speed range 20 - 4000 U/min spindle drive, 2-steps 33 kW 3,50 x 2.30 x 2.00 m Dimension coolant reservoir 1,20 x 0,80 x 1,00 mm weight of the machine ca. 6.5 t Weight of cooling unit 0,15 t | ||
| View all |
|
ERNAULT TOYODA (1) ET 320 (1) CNC Lathes (382) Turning Centres (337) |
France
