| Stockcode | : | 671106 |
| Type | : | CNC Lathes |
| Subtype | : | Turning Centres |

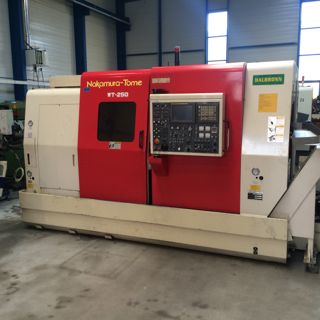

| Manufacturer | : | NAKAMURA |
| Model | : | WT 250 |
| Year | : | 2001 |
| Price | : | P.O.A. |
| Description | : | |
|
- Serial # : M237405
- Diameter Bar Capacity Main spindle : 65 mm - Diameter Bar Capacity Seconde operation : 51 mm - Chuck diameter : 250 mm - Chuck diameter 3 Jaws counter spindle : 160 mm - Max Machining Length : 555 mm - Main Spindle Power : 26/22 kW - Sub Spindle Power : 15/11 kW - Spindle Speed Range : 59 - 4500 Tr/min - Spindle Nose : A2-6” - 2 Turrets / 12 Stations with turning tools - Stroke upper turret : X = 195 mm - Y = ⁺/- 41mm - Z = 600 mm - Stroke lower turret : X = 195 mm - Z = 600 mm - Rapid Travers Rates upper turret : X = 12 m/min - Y = 6 m/min - Z = 24 m/min - Rapid Travers Rates lower turret : X = 12 m/min - Z = 24 m/m - Machine Dimensions : 3475 x 1933 x H 2225 mm - Machine Weight : 8500 KG | ||
| View all |
|
NAKAMURA (13) WT 250 (2) CNC Lathes (382) Turning Centres (337) |
France
