| Stockcode | : | 671102 |
| Type | : | CNC Lathes |
| Subtype | : | Turning Centres |

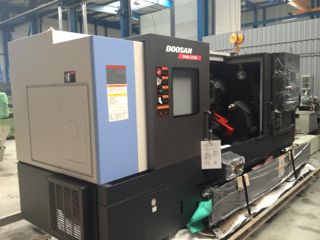

| Manufacturer | : | DOOSAN |
| Model | : | PUMA 3100L NEUF |
| Year | : | - |
| Price | : | P.O.A. |
| Description | : | |
|
- Diameter Bar Capacity : 102 mm
- Max Swing over bed : 850 mm - Max Swing over slide : 670 mm - Max machining diameter : 525 mm - Max Machining Length : 1280 mm Main Spindle - Chuck diameter : 305 mm - Spindle Nose : A2-11” - Spindle Power : 22/18,5 kW - Spindle Bore : 115 mm - Chuck Bore : ∅103 mm - Spindle Speed Range : 2800 rpm - Distance between Centers : 1200 mm Programable Tailstock - Sleeve diameter : 100 mm - Sleeve taper : 5 MK - Sleeve travel : 100 mm - Travel : X Axis : 293 mm - Z axis : 1350 mm - Speed Travel :14000 mm/tr - Z Axis Travel : 14000 mm/tr - Rapid Travers Rates : X = 30/min - Z = 30 m/min - Machine Dimensions : 4285 x 2067 x H2010 - Machine Weight : 7350 KG | ||
| View all |
|
DOOSAN (19) PUMA 3100L NEUF (1) CNC Lathes (382) Turning Centres (337) |
France
