| Stockcode | : | 670362 |
| Type | : | CNC Lathes |
| Subtype | : | Turning Centres |

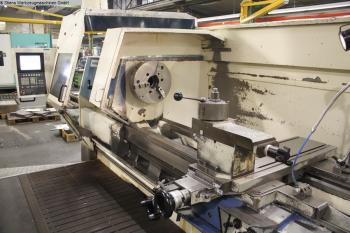

| Manufacturer | : | BOEHRINGER |
| Model | : | DUS 1000 / 4000 |
| Year | : | 1994 |
| Price | : | P.O.A. |
| Description | : | |
|
standard turning dia. 500mm
turning length 4.000mm control Sinumerik 805Siemens working range greates pass round over bed 1.000mm swing diameter over face slide 710mm radial face slide travel 520mm Upper Slide Travel 250mm center height over square guideway 500mm bed width 560mm longitudinal movement of bed slide 800mm turning tool - shaft cross cut 40 x 25mm tool clamping MultiFix C Main spindle turning speed range - main spindle 6,3 - 1.600U/min transmission ratio 2 transmission ratio 1 6,3 - 360U/min transmission ratio 2 28 - 1.600U/min power capacity - main spindel 46 / 37kW max. Torque 5.300 / 4.260Nm cutting speed 1 - 12.000m/min spindle head Gr. 11DIN 55027 spindle bore 128mm spindle diameter in front bearing 170mm internal taper -metric 136mm feeds face feeds 5m/min longitudinal feeds: 10m/min power feed longitudinal 20.000N power feed coss 12.500N threading thread pitch min. 0,1mm thread pitch max. 2.000mm tail stock diameter of quill 125mm quill stroke 280mm inner taper MT 6 total power requirement 70kVA weight of the machine ca. 12,1t dimensions of the machine ca. 8,0 x 2,5 x 2,3m Equipment Documents Coolantsystem Tailstock chuck 500mm div. tool holder Other information Cycle controled Lathe BOEHRINGER - DUS 1000 / 4000 | ||
