| Stockcode | : | 670361 |
| Type | : | CNC Lathes |
| Subtype | : | Turning Centres |
| Manufacturer | : | GILDEMEISTER |

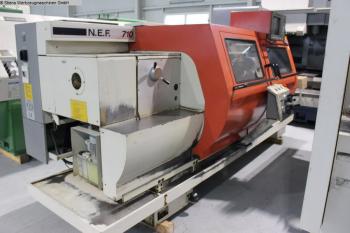

| Model | : | NEF 710 PLUS |
| Year | : | 1995 |
| Price | : | P.O.A. |
| Description | : | |
|
turning diameter 415mm
turning length 2000mm control Manual Plus greates pass round over bed 710mm swing diameter over slide rest 415mm travel -x axis 385mm travel -z axis 2000mm spindle nose A-11 spindle bore 92mm bearing diameter 140mm drive capacity - spindle motor 22kW Torque max. 2750Nm Speed 16 - 1.8001/min. transmission ratio 3 rapid traverse X-axis 6m/min rapid traverse Z-axis 8m/min dia. of quill 110mm quill stroke 210mm taper MK 6 tool taper MULTIFIX total power requirement 49kVA weight of the machine ca. 5,6t dimensions of the machine ca. 4,5 x 2,0 x 2,0m Equipment Documents Chip conveyor Coolantsystem Tailstock Other information Lathe - cycle controled GILDEMEISTER - NEF 710 Plus | ||
| View all |
|
GILDEMEISTER (33) NEF 710 PLUS (1) CNC Lathes (382) Turning Centres (337) |
Germany
