| Stockcode | : | 670360 |
| Type | : | CNC Lathes |
| Subtype | : | Turning Centres |
| Manufacturer | : | MUEGA |

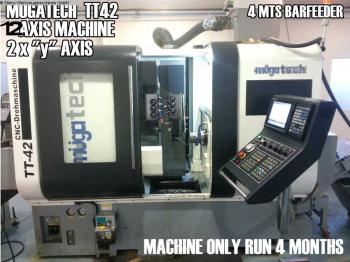

| Model | : | MUEGATECH TT 42 |
| Year | : | 2011 |
| Price | : | P.O.A. |
| Description | : | |
|
turning diameter max. 100mm
turning length max. 100mm control M 700 Mitsubishi axis stroke: x-axis x: 155 / x1: 380mm y-axis y: 410 / y1: 400mm z-axis z: 190 / z1: 340mm Main spindle: Number of revolutions max. 4.000rpm power capacity - main spindel 7,5kW max. bar capacity 42mm collet chuck ISO / DIN 173E C-Axis 0,001° swing dia. 300mm Subspindel: Number of revolutions max. 4.000rpm power capacity - Sub spindle 3,7kW clamping diameter max. 42mm collet chuck ISO / DIN 173E C-Axis 0,001° swing dia. 400mm spindle bore 30mm tool support: number of toolpositions 42pos. outer Ø Mainspindle 7 (16 x 16mm)pos outer Ø Subspindle 6 (16 x 16mm)pos internal Ø Mainspindle 7 (Ø 20mm)pos internal Ø Subspindle 10 (Ø 20mm)pos driven statition 2 x 6 (ER20)pos change-time chip to chip < 1,0sec Driven Tool Positions: Number of driven toolspositions 12 (2x 6)pos. Spindle speed - driven tools 4.000min -1 power capacity - driven tools 1,5kW clamping diameter max. 13mm feeds: rapid traverse 20m/min number of controlled axis 12 total power requirement -kW weight of the machine ca. 4,2t dimensions of the machine ca. 8,0 x 3,0 x 2,1m Equipment Documents Chip conveyor Coolantsystem parts catcher Subspindle bar feeder interface bar feeder IEMCA Boss 5523 / 4.000 C-axis 2x 0,001° hydraulic system collet chuck Y-axis 2x +/- 200mm work light Signal-Light through spindle coolant Other information 12 Axis CNC-Lathe MÜGA - MügaTech TT 42 - Main- and Subspindle (Simultan-Machining) - 2 Y-Axis / 2 C-Axis - 42 Tool-Positions / thereof 12 driven pos. - Only 800 Operating-Hours! TOP-Condition! | ||
| View all |
|
MUEGA (1) MUEGATECH TT 42 (1) CNC Lathes (382) Turning Centres (337) |
Germany
