| Stockcode | : | 670358 |
| Type | : | CNC Lathes |
| Subtype | : | Turning Centres |

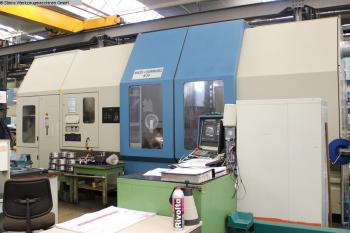

| Manufacturer | : | NILES SIMMONS |
| Model | : | N 30 / 1500 |
| Year | : | 2001 |
| Price | : | P.O.A. |
| Description | : | |
|
turning diameter 470mm
turning length 1.500mm control Sinumerik 840 DSiemens turning diameter over bed 670mm Working height 1.203mm axis stroke: x-travel 370mm z-travel 1568mm max. workpiece weight between centers 2.500kg max. workpiece weight 600kg Main spindle: turning speed range - main spindle 20 - 3.000min/-1 power capacity - main spindel 62,5 / 52kW max. Torque 2.424Nm spindle head A 11DIN 55026 spindle diameter in front bearing 200mm spindle bore 123mm 3-jaw-chuck diameter 400mm tool magazin: number of toolpositions 48pos. tool taper Capto C8 Tailstock: diameter of quill 150mm quill stroke 160mm tension force 4 - 25kN taper of center MK 5 traversing speed 8 / 12m/min feeds: feed speeds X: 0,1 - 18.000mm/min feed speeds Z: 0,1 - 30.000mm/min rapid power traverse in X-and Z direction 18 / 30m/min Feed force 15kN total power requirement 85kVA weight of the machine ca. 16,0t dimensions of the machine ca. 9,0 x 4,0 x 3,3m Equipment Documents Three Jaw Chuck 400mm div. tool holder Chip conveyor Coolantsystem high pressure coolant 25 / 80bar Tailstock hydraulic system Other information CNC-Lathe NILES SIMMONS - N 30 / 1500 - incl. 48 pos. Chain-Tool-Magazine | ||
