| Stockcode | : | 670355 |
| Type | : | CNC Lathes |
| Subtype | : | Turning Centres |

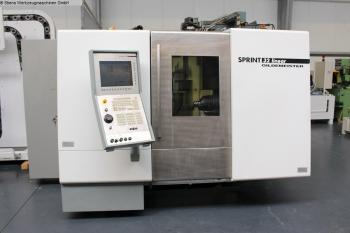

| Manufacturer | : | GILDEMEISTER |
| Model | : | SPRINT 32-8 LINEAR |
| Year | : | 2003 |
| Price | : | P.O.A. |
| Description | : | |
|
turning diameter 33mm
turning length 120mm control Fanuc 160i-B MAIN SPINDLE 5,5 (7,5)kW C1-axis, resolution of the spindle positioning 0,1° turning speed range 0 - 8.000U/min Torque (30 min) 24 (32,5)Nm working area, linear axis (X1 / Y1 / Z1) 65 / 350 / 120mm Max. speed, linear axis (X1 / Y1 / Z1) 40 / 40 / 40m/min Max. Acceleration 10 / 10 / 10m/s² COUNTERSPINDLE 3,7 (5,5)kW C2-axis, resolution of the spindle positioning 0,1° turning speed range 0 - 8000U/min Torque (30 min) 9,4 (14)Nm working area, linear axis (X2 / Y2 / Z2) 265 / 326 /320mm Max. speed, linear axis (X2 / Y2 / Z2) 18 / 40 / 40m/min Max. Acceleration 5 / 10 / 10m/s² TOOLHOLDER Number of fixed tools for internal turning 5 + 3 Shank diameter 32mm Number of fixed tools for outside turning 5 + 4 Shaft Section 16 x 16mm Number of rotating tools 3 + 3 Speed 0 - 5.000U/min. Torque (30 min) 2,25 (3,38)Nm TRANSPORT DIMENSIONS machine 3,8 x 1,8 x 1,9m chip conveyor 3,2 x 1,6 x 1,6m Bar Loading Magazine 4,0 x 0,6 x 1,4m high-pressure tool cooling system 1,4 x 1,2 x 1,8 total power requirement 34kVA weight of the machine ca. 4,35t dimensions of the machine ca. 8,2 x 2,5 x 1,9m Equipment Bar Loading Magazine FMB Turbo 5-42 High-Pressure Tool Cooling System 70bar Other information CNC-automatic bar lathe Sprint 32 linear with 8 controlled axis Max. Bar dia. Ø33 mm; Bar Feed Magazine FMB Turbo Highlights of SPRINT 32 linear: Linear drive in X1 for maximum precision Y-axis for main- and counter spindle Linear tool mount for drastic reduction of idle times | ||
| View all |
|
GILDEMEISTER (33) SPRINT 32-8 LINEAR (1) CNC Lathes (382) Turning Centres (337) |
Germany
