| Stockcode | : | 670353 |
| Type | : | CNC Lathes |
| Subtype | : | Turning Centres |
| Manufacturer | : | MAZAK |

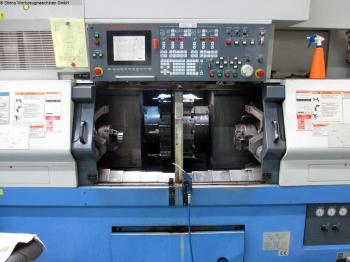

| Model | : | DUAL TURN 20 |
| Year | : | 1998 |
| Price | : | P.O.A. |
| Description | : | |
|
turning diameter 320mm
turning length 150 / 150mm control Mazatrol PC Fusion CNC 640 T standard turning dia. 254mm swing dia. 320mm bar material dia. 51mm centre distance 1.250mm max. workpiece weight 100kg Spindle left Unit: turning speed range - working spindle 0 - 5.000min/-1 power capacity 11 / 15kW max. Torque 330Nm spindle nose A2 - 6 spindle bore 61mm chucking diameter max. 200mm Spindle right Unit: turning speed range - working spindle 0 - 5.000min/-1 power capacity 11 / 15kW max. Torque 330Nm spindle nose A2 - 6 spindle bore 61mm chucking diameter max. 200mm Turret 1: number of toolpositions 12pos. Shank diameter 25mm drill diameter 40mm switching time 0,5 (1,4)sec Turret 2: number of toolpositions 12pos. Shank diameter 25mm drill diameter 40mm switching time 0,5 (1,4)sec axis stroke: x-travel 2x 230mm z-travel 2x 500mm feeds: rapid traverse x + z axis 30,5 / 33m/min Coolant: tank capacity 235l coolant capacity 20l/min pressure 0,8 - 1bar total power requirement 65kVA weight of the machine ca. 6,0t dimensions of the machine ca. 8,0 x 4,0 x 3,0m Equipment Documents Chip conveyor Coolantsystem Signal-Light Automatic Tool Changer 2 x 12pos. hydraulic system Three Jaw Chuck SMW AP-D 215-3 gantry loader Mazak Flex GL 100 C tool setting Other information CNC - Doublespindle-Lathe with 6 Axis MAZAK - DualTurn 20 - Double-Spindle - 2 Turrets - Portalloader GL 100 F | ||
