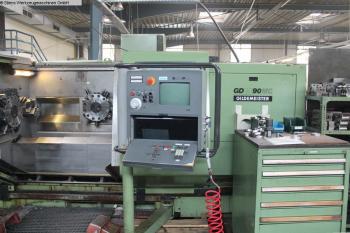

| Stockcode | : | 670351 |
| Type | : | CNC Lathes |
| Subtype | : | Turning Centres |
| Manufacturer | : | GILDEMEISTER |
| Model | : | GDM 90 |
| Year | : | 1990 |
| Price | : | P.O.A. |
| Description | : | |
|
turning diameter 290mm
turning length 1.250mm control EPL 2 swing diameter max. 500mm max. chucking diameter 250mm max. bar capacity 90mm axis stroke: x-axis 1/2: 190/250mm z-axis 1/2/3 : 850/1.250/1.250mm Spindle left Unit: turning speed range 20 - 4.000U/min power capacity 50kW max. Torque 475Nm spindle diameter in front bearing 140mm spindle bore 104,5mm max. bar capacity 90mm Spindle right Unit: turning speed range 20 - 4.000U/min power capacity 22kW max. Torque 210Nm spindle diameter in front bearing 110mm spindle bore 79mm max. bar capacity 65mm turret: Number of Turret 2pos number of toolpositions 2x 12pos. tool taper VDI 40 turning tool - shaft cross cut 20mm drill diameter 30mm feeds: rapid traverse 15m/min feed speeds 5.000mm/min Feed force 0,45 - 1,5kN Resolution 0,001mm total power requirement ca. 64kW weight of the machine ca. 9,0t dimensions of the machine ca. 8,0 x 4,0 x 2,5m Equipment Documents Chip conveyor high pressure coolant 30 bar parts catcher Subspindle bar feeder interface bar feeder LNS Hydrobar hydraulic system Three Jaw Chuck collet chuck div. tool holder --> Photos tool setting Other information CNC - Lathe GILDMEISTER - GDM 90 - Main- and Subspindle - 2 turrets aŽ 12 pos. - Prepared for live tools (Software) | ||
| View all |
|
GILDEMEISTER (33) GDM 90 (1) CNC Lathes (382) Turning Centres (337) |
Germany
