| Stockcode | : | 670350 |
| Type | : | CNC Lathes |
| Subtype | : | Turning Centres |
| Manufacturer | : | MORI SEIKI |
| Model | : | SL 250 B / 500 |
| Year | : | 1998 |
| Price | : | P.O.A. |
| Description | : | |
|
turning diameter 250mm

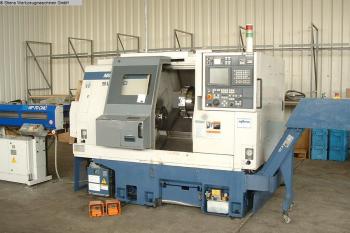

max. turning diameter 390mm turning length 485mm control MSC 500 greates pass round over bed 680mm Swing dia. over traverse guideway 510mm centre distance 575mm Main spindle: turning speed range - main spindle 35 - 3.500min/-1 power capacity - main spindel 15 / 11kW spindle bearing diameter 130mm spindle bore 86mm max. bar capacity 70mm spindle nose JIS A2-8 axis stroke: x-axis 235 (195+40)mm z-axis 520mm turret: number of toolpositions 10pos. Shank height for square tool 25mm Drill shank diameter max. 40mm turret change time 0,2sec. Tailstock: tailstock adjustment 515mm dia. of quill 85mm taper of center MK 5 quill stroke 120mm feeds: rapid traverse X: 18 / Z: 24m/min Tipp feed 0 - 1.260mm/min total power requirement 28,7kW weight of the machine ca. 4,5t dimensions of the machine ca. 5,0 x 2,5 x 2,5m Equipment Documents Chip conveyor bar feeder IEMCA - VIP 70 CNC Tailstock work light Other information CNC - Lathe MORI SEIKI - SL 250 B / 500 | ||
| View all |
|
MORI SEIKI (54) SL 250 B / 500 (1) CNC Lathes (382) Turning Centres (337) |
Germany
