| Stockcode | : | 670275 |
| Type | : | CNC Lathes |
| Subtype | : | Turning Centres |
| Manufacturer | : | BOEHRINGER |

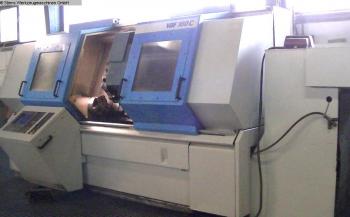

| Model | : | VDF 180 CU |
| Year | : | 1989 |
| Price | : | P.O.A. |
| Description | : | |
|
turning diameter 250mm
turning length 1000mm control Philips B3 - T standard turning dia. 200mm greates pass round over bed 310mm travel -x axis 295mm travel -z axis 1148mm turning speed range - main spindle 31,5 ~ 5.000U/min power capacity - main spindel 31 / 25kW C-Axis 1° transmission ratio 3 max. Torque 710Nm spindle bore 52mm spindle diameter in front bearing 90mm spindle nose DIN 55026-6 turret (x-stations) 12pos. driven statition 12pos Shank diameter 25 x 25mm tail stock diameter of quill 90mm quill stroke 80mm pressure center sleeve 10.000N taper of center SK 30 feed speeds 0,1 - 10.000mm/min rapid traverse 10m/min Feed force 15kN total power requirement 72kW weight of the machine ca. 8,1t dimensions of the machine ca. 6,0 x 2,2 x 2,1m Equipment Chip conveyor Coolantsystem Tailstock Three Jaw Chuck steady rest Other information CNC Lathe BOEHRINGER - VDF 180 CU - driven tool positions - 1999 completely overhauld - 2006 comprehensive factory maintenance | ||
