| Stockcode | : | 670273 |
| Type | : | CNC Lathes |
| Subtype | : | Turning Centres |
| Manufacturer | : | MAZAK |

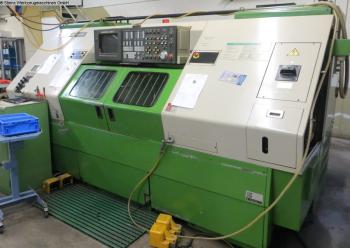

| Model | : | MULTIPLEX 620 |
| Year | : | 1990 |
| Price | : | P.O.A. |
| Description | : | |
|
turning diameter max. 210mm
turning length 1.180mm control Mazatrol T32-6 max. swing diameter 390mm Main spindle: turning speed range - main spindle 35 - 4.600min/-1 power capacity - main spindel 15kW max. Torque 284Nm spindle nose JIS A2-6 spindle bore 61mm max. bar capacity 50mm C-Axis 0,001° Subspindel: Spindle speed range subspindle 35 - 4.600min/-1 power capacity - Sub spindle 15kW max. Torque 284Nm spindle nose JIS A2-6 spindle bore 61mm max. bar capacity 50mm C-Axis 0,001° Turret 1 + 2: number of toolpositions 2 x 12pos Number of driven toolspositions 2 x 12pos change-time tool to tool 0,7sec Shank diameter 25mm Drill shank diameter 40mm Driven Tool Positions: Spindle speed - driven tools 75 - 1.500min -1 power capacity - driven tools 2,2kW max. Torque 28Nm axis stroke: x-axis 1 / 2 : 210 / 210mm z-axis 1 / 2 : 430 / 485mm input unit X / Z : 0,001mm feeds: rapid traverse X / Z : 24m/min rapid traverse C-axis 100min/-1 feed speeds max. 5.000mm/min total power requirement 66,1kVA weight of the machine ca. 8,1t dimensions of the machine ca. 4,5 x 2,5 x 2,5m Equipment Chip conveyor Coolantsystem parts catcher Subspindle bar feeder interface bar feeder Irco hydraulic system div. tooling tool setting Other information CNC - Turning- and Millingcenter MAZAK - Multiplex 620 - Main- and Subspindle - 2 turrets - driven tool positions | ||
