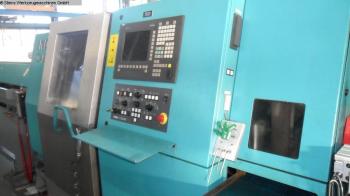

| Stockcode | : | 670271 |
| Type | : | CNC Lathes |
| Subtype | : | Turning Centres |
| Manufacturer | : | INDEX |
| Model | : | C 42 |
| Year | : | 2005 |
| Price | : | P.O.A. |
| Description | : | |
|
chucking diameter max. 160mm
turning length max. 600mm control C 200 4D / (840 D Siemens) Main spindle: Max. rpm 6.300min/-1 power capacity - main spindel 20 / 27kW Bar feed max. 43mm spindle diameter in front bearing 85mm max. Torque 105 / 145Nm spindle head 5 / DIN 55026 + ISO 702 C-Axis 0,001° stroke max. 7mm Subspindel: Max. rpm 6.300min/-1 power capacity - Sub spindle 20 / 27kW Bar feed max. 43mm spindle diameter in front bearing 85mm max. Torque 105 / 145Nm spindle head 5 / DIN 55026 + ISO 702 C-Axis 0,001° x-travel 150mm z-travel 600mm rapid traverse X: 25 / Z: 45m/min Feed force 5kN stroke max. 20mm Turret 1: number of toolpositions 12pos. Shank diameter 25 x 48mm x-axis 110mm y-axis 70mm z-axis 360mm rapid traverse ( X / Y / Z ) 25 / 12 / 45m/min Feed force 5 / 4 / 5kN driven statition 12pos max. spindle speed driven tools 6.000U/min. power capacity - driven tools 4 / 8kW max. Torque 8 / 16Nm Turret 2 + 3: number of toolpositions 2 x 12pos. Shank diameter 25 x 48mm x-axis 110mm y-axis 70mm z-axis 360mm rapid traverse ( X / Y / Z ) 25 / 12 / 45m/min Feed force 5 / 4 / 5kN driven statition 2 x 12pos max. spindle speed driven tools 6.000U/min. power capacity - driven tools 4 / 8kW max. Torque 8 / 16Nm total power requirement 42kW weight of the machine ca. 6,5t dimensions of the machine ca. -m Equipment Documents Chip conveyor bar feeder Irco Profimat parts catcher hydraulic system driven tools Coolantsystem Signal-Light Subspindle bar feeder interface C-axis 2x 0,001° Three Jaw Chuck tool setting Other information CNC - Turning- and MillingCenter INDEX - C 42 - Main- and Subspindle - 3 turrets - driven tool positions | ||
