| Stockcode | : | 670269 |
| Type | : | CNC Lathes |
| Subtype | : | Turning Centres |
| Manufacturer | : | INDEX |

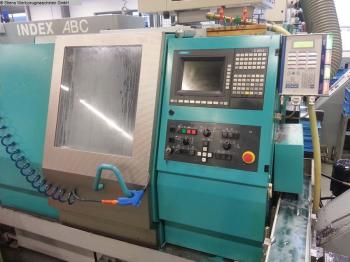

| Model | : | ABC 60 SPEEDLINE |
| Year | : | 1996 |
| Price | : | P.O.A. |
| Description | : | |
|
turning diameter 60mm
turning length max. 280mm control Index C200-4 (Siemens) Main spindle: Number of revolutions 6.000rpm power capacity - main spindel 13 / 20kW max. Torque 62 / 95Nm spindle nose 5 ISO 702/1 spindle diameter in front bearing 100mm spindle passage 53mm Turret 1: number of toolpositions 7pos. driven statition 7pos. worktool system DIN 69880 / 25mm x-axis 90mm z-axis 280mm Feed force 5,5kN rapid traverse 24m/min Turret 2: number of toolpositions 6pos. x-axis 81mm z-axis 80mm Feed force x: 8,3 / z: 5,5kN rapid traverse x: 16 / z: 24m/min total power requirement 27kW weight of the machine ca. 3,0t dimensions of the machine ca. 7,0 x 3,0 x 2,5m Equipment Chip conveyor Coolantsystem high pressure coolant 20 bar parts catcher Signal-Light Subspindle bar feeder interface bar feeder LM 3200 C-axis 0,001° hydraulic system collet chuck Turret 7 + 6 pos. driven tool positions central lubrication Other information CNC - Turning- and MillingCenter INDEX - ABC 60 SpeedLine - completely overhauld in 2010 - back site machining 5 pos. - driven tools positions | ||
