| Stockcode | : | 670268 |
| Type | : | CNC Lathes |
| Subtype | : | Turning Centres |

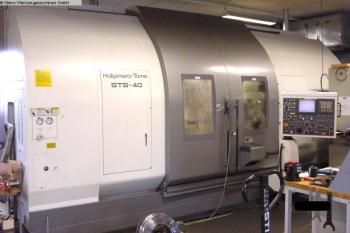

| Manufacturer | : | NAKAMURA TOME |
| Model | : | STS 40 A |
| Year | : | 2003 |
| Price | : | P.O.A. |
| Description | : | |
|
turning diameter 470mm
turning length 1.500mm control Fanuc 16i - TB max. turning diameter 570mm spindle distance 1.900mm Main spindle: Max. rpm 3.500min/-1 power capacity - main spindel 22 / 15kW chucking diameter 255mm spindle nose A1-8 spindle diameter in front bearing 130mm spindle bore 85mm max. bar capacity 71mm C-Axis 0,001° Subspindel: Max. rpm 3.500min/-1 power capacity - Sub spindle 22 / 15kW chucking diameter 255mm spindle nose A1-8 spindle diameter in front bearing 130mm spindle bore 85mm max. bar capacity 71mm C-Axis 0,001° Milling Spindle: Max. rpm 6.000min/-1 power capacity - milling spindle 15 / 11kW tool taper KM 63 Swivel range + / - 100° b-axis 0,001° axis stroke: x-axis 1: 620mm x-axis 2 & 3: 275mm z-axis 1: 1.600mm z-axis 2 & 3: 1.600mm y-axis 200 (+110 / -90)mm turret: Number of Turret 1pos number of toolpositions 12pos. driven statition 12pos Spindle speed - driven tools 27 - 3.600min -1 power capacity - driven tools 5,5 / 3,7kW tool magazin: number of toolpositions 80pos. max. tool diameter 90mm max. tool-dia with free toolbox 120mm max. tool length 250mm max. tool weight 8kg change time 1,5sec feeds: rapid traverse X-axis 1 & 2 & 3: 25m/min rapid traverse Z-axis 1 & 2 & 3: 30m/min rapid traverse Y-axis 20m/min Rapid B-Axis 12,5min/-1 Rapid B-Axis 2: 30min/-1 rapid traverse C-axis 1 & 2: 400min/-1 number of controlled axis 9pos. total power requirement 170kVA weight of the machine ca. 25t dimensions of the machine ca. 7,0 x 4,0 x 3,3m Equipment Documents Chip conveyor Coolantsystem hydraulic system Subspindle Milling spindle Tool Magazine 80 pos. Turret 12 pos. C-axis 2x B-axis 2x Y-axis tool setting Other information 9-Axis-CNC - Turning- and Millingcenter NAKAMURA-TOME - STS 40 A - Main- and Subspindle - Swiveling-Millingspindle - lower tool-turret - driven tool positions - Operating-Hours: ca. 18.000h / Spindle-Hours: ca. 5.000h - WITHOUT Tooling ! | ||
