| Stockcode | : | 670267 |
| Type | : | CNC Lathes |
| Subtype | : | Turning Centres |
| Manufacturer | : | SPINNER |

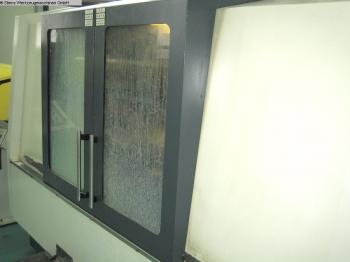

| Model | : | TD 42 TRIPLEX |
| Year | : | 2005 |
| Price | : | P.O.A. |
| Description | : | |
|
max. bar capacity 42 / 42mm
turning length 600mm control Fanuc 31i Main spindle: Max. rpm 7.000min/-1 power capacity - main spindel 15kW Bar feed 42mm C-Axis 0,001° spindle nose 110mm Subspindel: Max. rpm 7.000min/-1 power capacity - Sub spindle 15kW Bar feed 42mm C-Axis 0,001° spindle nose 110mm turret: Number of Turret 2 + 1pos number of toolpositions 3x 12pos. Number of driven toolspositions 3x 12pos. tool taper VDI 25 axis stroke: x-travel 1/2/3: 180mm y-axis 1/3: +/-45mm z-travel 1/2/3: 704/620/704mm total power requirement -kW weight of the machine ca. 7,5t dimensions of the machine ca. 8,0 x 3,0 x 2,5m Equipment Documents Chip conveyor Knoll high pressure coolant 15 bar parts catcher Subspindle bar feeder interface bar feeder FMB Turbo 5-55 / 3200 C-axis 2x 0,001° hydraulic system collet chuck BZI 42 / 173 E Y-axis 2x +/-45 mm div. tool holder div. collets driven tools Turret 3x 12 pos. tool setting flush system Other information CNC - Turning- and MillingCenter SPINNER - TD 42 Triplex - Main- and Subspindle (water-cooled) - 3 turrets - 3x 12 driven tool positions - Simultan-Machining - Dialog-Programing "Manual Guide i" - turret 2+3 can be also used as steadyrest + tailstock | ||
