| Stockcode | : | 670266 |
| Type | : | CNC Lathes |
| Subtype | : | Turning Centres |
| Manufacturer | : | GILDEMEISTER |

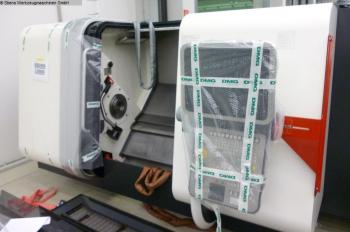

| Model | : | CTX BETA 800 V 3 |
| Year | : | 2013 |
| Price | : | P.O.A. |
| Description | : | |
|
turning diameter 410mm
turning length 800mm control 840 D ErgoLine Siemens greates pass round over bed 700mm swing diameter over bed slide 380mm max. turning diameter 410mm centre distance 975mm travel -x axis 300mm travel -z axis 850mm turning speed range - spindle 25 - 5.000U/min chucking diameter max. 315mm spindle bore 87mm bar material dia. 65mm spindle bearing diameter 130mm power capacity 40% ED = 34kW power capacity 100 % ED = 25kW max. Torque 280Nm C-Axis 0,01° turret (x-stations) 12 tool taper DIN 69880 / 40mm driven statition 12pos Spindle speed driven tools ~ 4.000min -1 power capacity - driven tools 40% ED = 11,3kW power capacity - driven tools 100 % ED = 5,6kW rapid traverse X-axis 30m/min rapid traverse Z-axis 30m/min tail stock tailstock adjustment 800mm morse taper MK 5 rapid traverse 4m/min total power requirement 55kVA weight of the machine ca. 6,5t dimensions of the machine ca. 5,5 x 3,0 x 2,5m Equipment Chip conveyor Coolantsystem 12 bar Tool drive mechanisum Signal-Light Tailstock tool setting Other information CNC Turning- and Milling Center GILDEMEISTER - CTX beta 800 | ||
