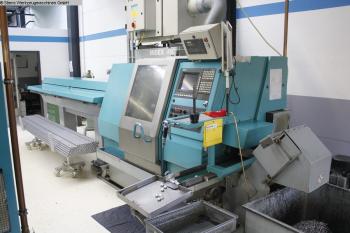

| Stockcode | : | 670264 |
| Type | : | CNC Lathes |
| Subtype | : | Turning Centres |
| Manufacturer | : | INDEX |
| Model | : | ABC 42 / #040 |
| Year | : | 1995 |
| Price | : | P.O.A. |
| Description | : | |
|
spindle passage 36mm
turning length max. 280mm control C200-4 / 840C Siemens Main spindle: turning speed range - main spindle max. 6.300min/-1 power capacity - main spindel 13 / 21kW max. Torque 62 / 102Nm spindle diameter in front bearing 85mm spindle hollow 36mm C-Axis 0,001° Subspindel: Spindle speed range subspindle max. 4.500min/-1 max. Torque 10Nm clamping diameter max. 42mm clamping length max. 38mm spindle bore 15,5mm Turret 1: number of toolpositions 8pos. shaft cross cut 25 x 48 DIN 69880 change-time tool to tool 0,2sec travel -x axis 90mm travel -z axis 280mm Feed force 5,5kN rapid traverse 24m/min Driven Tool Positions: 8 Spindle speed - driven tools 6.000min -1 power capacity - driven tools 3,3kW max. Torque 7,5Nm Backside processing: Fixed tools max. 5pos Turret 2: number of toolpositions 6pos. travel -x axis 81mm travel -z axis 80mm Feed force X: 8,3 / Z: 5,5kN rapid traverse X: 16 / Z: 24m/min Thread milling and turning facility polygon max. 8.000min/-1 total power requirement ca. 30kW weight of the machine ca. 3,0t dimensions of the machine ca. 7,0 x 3,0 x 2,5m Equipment Documents Coolantsystem Chip conveyor bar feeder Index LM 3200 hydraulic system driven tool positions driven tools parts catcher Subspindle Turret 2x Other information CNC - High Quality - Turning- and MillingCenter INDEX - ABC 42 / #040 - two turrets / 8 + 6 pos. - live tool positions - thread milling- and polygonal turning unit - subspindle on upper turret | ||
