| Stockcode | : | 670262 |
| Type | : | CNC Lathes |
| Subtype | : | Turning Centres |

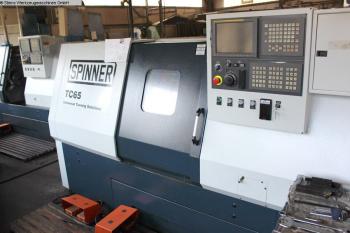

| Manufacturer | : | SPINNER |
| Model | : | TC 65 MC / 21L |
| Year | : | 2009 |
| Price | : | P.O.A. |
| Description | : | |
|
turning diameter 310mm
turning length 600mm control Fanuc 21i turning diameter over bed 425mm Main spindle turning speed range - main spindle 500 - 4.500U/min max. Torque 183Nm power capacity - main spindel 18,5kW C-Axis 360° Spindle diameter 100mm chucking diameter 250mm spindle bearing diameter 120mm clamping cylinder 65mm Bar feed 65mm spindle nose A8DIN 55026 axis stroke: x-axis 230mm z-axis 640mm rapid traverse X-axis 15m/min rapid traverse Z-axis 24m/min turret: tool positions turret 12pos. driven statition 12pos. tool taper DIN 6988030 mm Spindle speed driven tools 6.000min -1 power capacity - driven tools 3,7kW max. Torque 9,5Nm tail stock dia. of quill MK 480 mm quill stroke 120mm tailstock adjustment 475mm tension force 500daN total power requirement -kW weight of the machine ca. 4,2t dimensions of the machine ca. 3,7 x 2,2 x 1,8m Equipment Documents Chip conveyor Tailstock C-axis hydraulic system Coolantsystem tool setting Three Jaw Chuck div. tool holder 12 pos. driven tools 1 pos. driven tool positions hollow chuck unit bar feeder interface Other information CNC - Turning- and Milling Center SPINNER - TC 65 MC / 21l - Spindlehrs.: ca. 2.900h | ||
