| Stockcode | : | 670259 |
| Type | : | CNC Lathes |
| Subtype | : | Turning Centres |

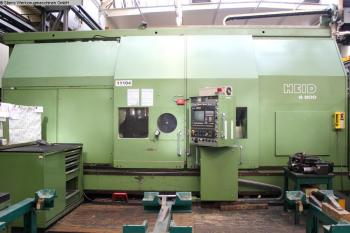

| Manufacturer | : | HEID |
| Model | : | S 800 / 2000 |
| Year | : | 1991 |
| Price | : | P.O.A. |
| Description | : | |
|
greates pass round over bed 1000mm
swing diameter over slide rest 800mm turning length 2000mm control SINUMERIK 850 TSiemens travel -x axis 820mm travel -z axis 2100mm spindle bearing diameter 267mm spindle bore 105mm diameter of spindle flange DIN 55026Gr. 15 max. torque on the spindle 12.000Nm transmission ratio 4 transmission ratio 1 4,5 ~ 100U/min transmission ratio 2 9 ~ 220U/min transmission ratio 3 18 ~ 440U/min transmission ratio 4 36 ~ 900U/min turning speed range - spindle 4,5 ~ 900U/min rapid traverse 10m/min longitudinal feeds: 20kN C - Axis 0,001° Max. rpm 16U/min Torque 1950 Nm/100% work piece power 12 kW / 60%kW transmission ratio 1 137 Nm / 60% turning speed range - milling 17 ~ 666U/min transmission ratio 2 46 Nm / 60% turning speed range - milling 50 ~ 2.000U/min tail stock dia. of quill 200mm quill stroke 200mm taper MK 6 quill power 50kN coolant tank capacity 1500l coolant capacity 40l/min feed pressure ca. 4bar coolant capacity 80l/min feed pressure 16bar tool piece magazine with 15 pos. tool adaptor HEID MF 60 ABS63/40 total power requirement 170kVA weight of the machine ca. 29t dimensions of the machine ca. 8,0 x 9,0 x 9,0m Equipment Tailstock Chip conveyor Coolantsystem high pressure coolant driven tools div. tool holder C-axis face plate Other information CNC Turning- and Milling Center HEID S 800 / 2000 - previously for big diameter machining - incl. external tool-change-pallet-system | ||
