| Stockcode | : | 670257 |
| Type | : | CNC Lathes |
| Subtype | : | Turning Centres |
| Manufacturer | : | NILES SIMMONS |

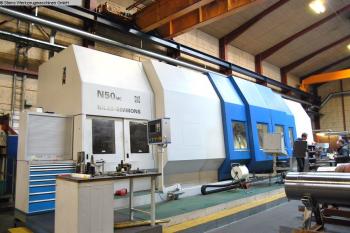

| Model | : | N 50 MC / 4500 |
| Year | : | 2007 |
| Price | : | P.O.A. |
| Description | : | |
|
swing diameter 1.250mm
turning length 4.500mm control Sinumerik 840 D turning diameter over bed 1.300mm axis stroke: x-travel 920mm z-travel 4.500mm Main spindle: turning speed range - main spindle 10 - 1.000min/-1 power capacity - main spindel 100 / 126kW max. Torque 15.000Nm spindle bore 200mm C-Axis 0,001° Work tool spindle: B - Axis -105 / +95° number of toolpositions 12pos. tool taper HSK 100 Spindle speed - driven tools 0 - 3.500min -1 power capacity - driven tools 38 / 48,3kW Tailstock: Y - Axis -400 / +375mm diameter of quill 195mm quill stroke 300mm tension force 5 - 35kN taper of center MK 6 feeds: feed speeds 0,1 - 24.000mm/min rapid power traverse in X-and Z direction 12 / 24m/min total power requirement 85kW weight of the machine ca. 75,0t dimensions of the machine ca. 16,0 x 6,0 x 5,0m Equipment Documents Chip conveyor Coolantsystem high pressure coolant 11 / 80bar Tailstock hydraulic system steady rest 125 - 460 mm hydr. steady rest 450 - 850 mm hydr. div. tooling Other information CNC-Turning- and Millingcenter NILES SIMMONS - N 50 MC / 4500 - C-Axis - B-Axis - Y-Axis - driven tool position | ||
