| Stockcode | : | 670200 |
| Type | : | CNC Lathes |
| Subtype | : | Turning Centres |
| Manufacturer | : | GILDEMEISTER |

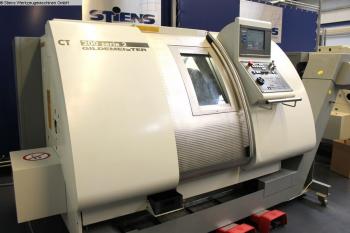

| Model | : | CTX 200 S2 V1 |
| Year | : | 2001 |
| Price | : | P.O.A. |
| Description | : | |
|
turning diameter 210mm
turning length 350mm control EP 3190 Heidenhain swing diameter 440mm Main spindle: turning speed range - main spindle 25 - 5.000min/-1 power capacity - main spindel 9kW max. Torque 84Nm spindle nose 120h5 max. chucking diameter 170mm spindle bearing diameter 85mm spindle bore 56mm Max. bar diameter 42mm turret: number of toolpositions 12pos. tool taper DIN 69880 / 20mm axis stroke: x-travel 160mm z-travel 350mm Tailstock: quill stroke 350mm taper of center MK 3 diameter of quill 80mm tension force 3kN feeds: rapid traverse X : 20 / Z : 30m/min Feed force X : 2 / Z : 3kN total power requirement 35kVA weight of the machine ca. 3,5t dimensions of the machine ca. 4,5 x 2,5 x 2,0m Equipment Chip conveyor Fa. BMF tool setting hollow chuck unit bar feeder interface parts catcher Tailstock Turret 12 pos. Three Jaw Chuck 140 mm / Fa. BERG Other information CNC - Lathe GILDEMEISTER - CTX 200 S2 V1 - Top-Condition! - Control extension TurnPlus - only few operating hours (+/- 11.000h) There are 5 machines available, identical of construction! | ||
