| Stockcode | : | 670199 |
| Type | : | CNC Lathes |
| Subtype | : | Turning Centres |
| Manufacturer | : | TRAUB |
| Model | : | TNM 42 |
| Year | : | 2003 |
| Price | : | P.O.A. |
| Description | : | |
|
turning diameter 42mm

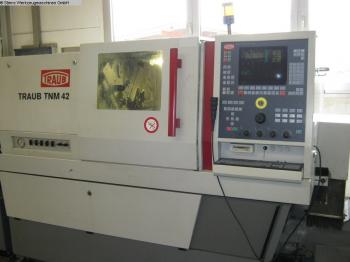

turning length ~ 250mm control TX 8 H Workingspindle: Bar feed 7 - 42mm turning speed range 40 - 4.000U/min power capacity 5,5 / 6,9 / 11kW Torque 110 / 138 / 220Nm stroke 100mm Power 1.600N Infeed slide: Slide 4pos. slide stroke X50mm work stroke 33mm Feed force 4kN rapid traverse 15m/min Feed speed 2,5m/min. Length of the rolling table 112 x 320mm Guide way width 30mm turret slide: z-axis 250mm x-axis 80 ( 75 + 5 )mm rapid traverse 15m/min Feed force 8,5kN number of toolpositions 8pos. tool taper 7 x 25,4 switching time 0,35 - 0,9sec workpiece checker 42 x 100mm rest material length 42 x 240mm Backside processing max. workpiece sizes 42 x 100mm longitudinal stroke 130mm Feed force 4,25kN turning speed range 300 - 5.600U/min power capacity 2,16kW Torque 18Nm total power requirement 20kW weight of the machine ca. 3,0t dimensions of the machine ca. 7,5 x 2,0 x 2,0m Equipment Documents Chip conveyor bar feeder Stamag 3000 Coolantsystem parts catcher Signal-Light hydraulic system collet chuck Turret 8 pos. pre tool monitoring Other information CNC - Lathe TRAUB - TNM 42 - shown tools are NOT equipped with the machine! | ||
