| Stockcode | : | 667091 |
| Type | : | CNC Lathes |
| Subtype | : | Turning Centres |
| Manufacturer | : | DOOSAN |

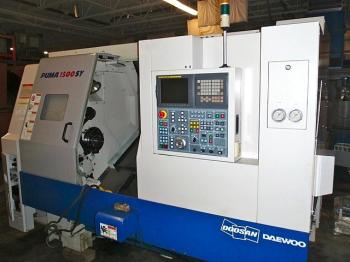

| Model | : | PUMA 1500SY |
| Year | : | 2005 |
| Price | : | P.O.A. |
| Description | : | |
|
Swing Over Bed 23.6" Swing Over Saddle 21.6" Recom. Turning Diameter 6.7" Max. Turning Diameter 12.9" Max. Turning Length 20.8" Bar Working Diameter 1.77" X-Axis Travel 9.8" Z-Axis Travel 22.8" Y-Axis Travel 3.9" +/- 1.9" B-Axis Travel 22.8" Spindle Speed 6000 RPM Spindle Nose A2#5 Spindle Through Hold Dia. 2.08" Min. Spindle Indexing Angle (c-axis) 0.001 deg. No. Of Tool Stations 12 OD Tool Size 1" Boring Bar Diameter 1.57" Indexing Time 0.1 sec Rotary Tool Spindle Speed 6,000 RPM Sub-Spindle Speed 6,000 RPM Sub-Spindle Through Hole Dia. 1.77" Min.Sub-Spindle Indexing Angle (c-axis) 0.001 deg Rapid Traverse (x/z axis) 787/945 IPM Rapid Traverse (y axis) 295 IPM Rapid Traverse (b axis) 787 IPM Main Spindle Motor 20/15 HP Sub Spindle Motor 10/7.5 HP Rotary Tool Spindle Motor 5 HP Electric Power Supply 46.1 kVA Dimensions (LxWxH) 136"x67"x81" Machine Weight 11,700 lbs Equipped With: - Fanuc 18i-TB CNC Control - 12 pos. Turret - Tool Probe - Parts Catcher - (2) Radial Heads - (1) Axial Head - Sub-Spindle - Chip Conveyor
| ||
