| Stockcode | : | 667090 |
| Type | : | CNC Machining Centres |
| Subtype | : | Vertical |
| Manufacturer | : | HAAS |

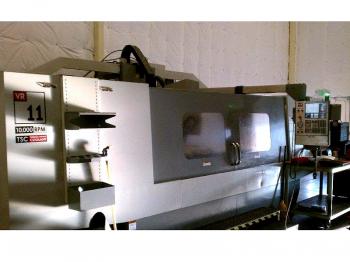

| Model | : | VR-11 |
| Year | : | 2007 |
| Price | : | P.O.A. |
| Description | : | |
|
TRAVELS: -X AXIS: 120 " -Y AXIS: 40 " -Z AXIS: 30 " -A AXIS (TILT): ± 32 ° -B AXIS (ROT): ± 32 ° TABLE: -LENGTH: 120 " -WIDTH: 28 " -T-SLOT WIDTH: 5/8 " -T-SLOT CENTER DISTANCE: 4.92 " -MAX WEIGHT ON TABLE (EVENLY DISTRIBUTED): 4000 LB SPINDLE: -MAX RATING: 30 HP -MAX SPEED: 10,000 RPM -DRIVE SYSTEM: VECTOR DRIVE -SPINDLE NOSE TO TABLE (~ MIN): 4 " -SPINDLE NOSE TO TABLE (~ MAX): 34 " -TAPER: CT -BEARING LUBRICATION: AIR/OIL INJECTION FEEDRATES -RAPIDS ON X: 360 IN/MIN -RAPIDS ON Y: 600 IN/MIN -RAPIDS ON Z: 600 IN/MIN -RAPIDS ON A: 1900 °/MIN -RAPIDS ON B: 1900 °/MIN -MAX CUTTING: 360 IN/MIN -MAX CUTTING A: 600 °/MIN -MAX CUTTING B: 600 °/MIN AXIS MOTORS -MAX RATING X: 7.5 HP -MAX RATING Y: 5.0 HP -MAX RATING Z: 5.0 HP -MAX THRUST X: 3400 LB -MAX THRUST Y: 3400 LB -MAX THRUST Z: 3400 LB TOOL CHANGER -CAPACITY: 32 -MAX TOOL DIAMETER: 3.5 " -MAX TOOL WEIGHT: 12 LB -TOOL-TO-TOOL (AVG): 11.0 SEC -CHIP-TO-CHIP (AVG): DEPENDS ON APPLICATION ACCURACY -REPEATABILITY A,B AXES: 10 ARC-SEC -POSITIONING A,B AXES (±): 45 ARC-SEC GENERAL -AIR REQUIRED: 9 SCFM, 100 PSI -COOLANT CAPACITY: 95 GAL POWER (OPTIONS MAY INCREASE REQUIREMENT): 195-260 VAC/100 A MACHINE WEIGHT: 32500 LB EQUIPPED WITH: LCD HARD DRIVE WITH ETHERNET THRU SPINDLE COOLANT 10K RPM SPINDLE HIGH SPEED MACHINING CHIP AUGER REMOTE JOG HANDLE PROGRAMMABLE COOLANT RIGID TAPPING QUICK CODE
| ||
