| Stockcode | : | 663019 |
| Type | : | CNC Lathes |
| Subtype | : | Turning Centres |
| Manufacturer | : | MORI SEIKI |

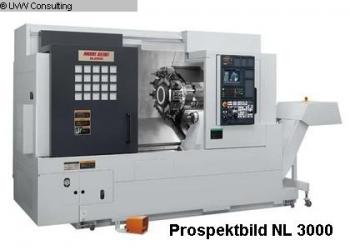

| Model | : | NL 3000 MC/2000 |
| Year | : | 2009 |
| Price | : | P.O.A. |
| Description | : | |
|
turning diameter 302 mm
turning length 2123 mm control MSX 850 MAPPS III swing dia. 825 mm max. turning diameter 430 mm bar material dia. 90 mm rapid travel - longitudinal/face 30 / 30 m/min Spindle RPM 3000 1/min spindle drive 30 / 25 kW Spindle Torque 1025 Nm turret stations / rotary tool stations 12 / 12 5.5/3,7 kW speed of driven tools 6000 1/min Tailstock Travel 2164 mm tailstock quill taper MT 5 tailstock quill diameter 150 mm quill stroke 150 mm total power requirement 41 kVA weight of the machine ca. 11,5 t dimensions of the machine ca. 7,5 x 2,6 x 2,4 m Additions Accessories Chip conveyor Parts and total counter steadyrest manual positioning Interface f. SLU 3 Power Chuck Kitagawa B 212 (315 mm) Additional information High precision Turning and Milling Centre with milling tools and C- axis. Easy programming by MAPPS III Control. All existing toolholders and life tool holders come with the machine. | ||
| View all |
|
MORI SEIKI (54) NL 3000 MC/2000 (1) CNC Lathes (382) Turning Centres (337) |
Germany
