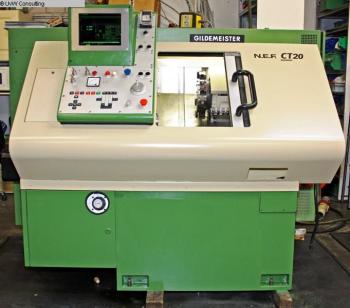

| Stockcode | : | 663015 |
| Type | : | CNC Lathes |
| Subtype | : | Turning Centres |
| Manufacturer | : | GILDEMEISTER |
| Model | : | CT 20 |
| Year | : | 1991 |
| Price | : | P.O.A. |
| Description | : | |
|
turning diameter 280 mm
turning length 250 mm control ELTROPILOT EPL 2 turning dia. over face-slide 185 mm x-travel 160 mm z-travel 250 mm spindle head 120 h5 mm spindle diameter in front bearing 85 mm spindle bore 56 mm turning speed range - spindle 25-5000 min-¹ number of toolholder-holes 16 power capacity 7,5 kW tool taper bore VDI 20 tailstock quill taper MT 3 weight of the machine ca. 2,6 t dimensions of the machine ca. 2,18 x 1,61 x 1,73 m Additional information Machine reconditioned and equipped with: 16 tool stations turret VDI 20 Chuck set - bar working 36 mm Tail stock MT 3 Chip conveyor Collet chuck Parts catcher | ||
| View all |
|
GILDEMEISTER (33) CT 20 (1) CNC Lathes (382) Turning Centres (337) |
Germany
    |  |
