| Stockcode | : | 660883 |
| Type | : | CNC Machining Centres |
| Subtype | : | Horizontal |
| Manufacturer | : | HAAS |
| Model | : | EC-1600 |
| Year | : | 2005 |
| Price | : | P.O.A. |
| Description | : | |
|

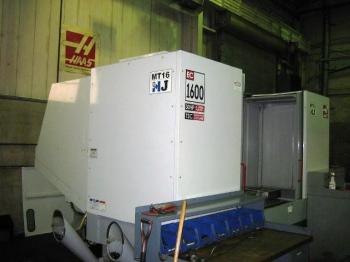

HAAS, EC-1600, 64" X, 40" Y, 32" Z, NEW: 2005
SPECIFICATIONS: TRAVELS: -X-AXIS: 64" -Y-AXIS: 40" -Z-AXIS: 32" TABLE: -LENGTH: 64" -WIDTH: 36" -T-SLOT WIDTH: 5/8" -T-SLOT CENTER DISTANCE: 4.92" -MAX WEIGHT ON TABLE (EVENLY DISTRIBUTED): 10000 LB SPINDLE: -MAX RATING: 30 HP -MAX SPEED: 6000 RPM -MAX TORQUE: 450 FT-LB @ 500 RPM -DRIVE SYSTEM: 2-SPEED GEARED HEAD -TAPER: CT OR BT 50 FEEDRATES: -RAPIDS ON-X: 540 IN/MIN -RAPIDS ON-Y: 540 IN/MIN -RAPIDS ON-Z: 540 IN/MIN -MAX CUTTING: 500 IN/MIN AXIS MOTORS: -MAX THRUST-X: 5600 LB -MAX THRUST-Y: 5600 LB -MAX THRUST-Z: 7500 LB TOOL CHANGER: -TYPE: SMTC -CAPACITY: 30+1 -MAX TOOL DIAMETER(ADJACENT EMPTY): 10" -MAX TOOL DIAMETER(FULL): 4" -MAX TOOL LENGTH(FROM GAGE LINE): 20 " -MAX TOOL WEIGHT: 30 LB -TOOL-TO-TOOL (AVG): 10.3 SEC -CHIP-TO-CHIP (AVG): 12.6 SEC ACCURACY: -POSITIONING(±): 0.0003" -REPEATABILITY(±): 0.0002" GENERAL: AIR REQUIRED 9 SCFM, 100 PSI COOLANT CAPACITY: 95 GAL POWER (OPTIONS MAY INCREASE REQUIREMENT) 195-260 VAC/100 A 354-488 VAC/50 A 195-260 VAC/100 A 354-488 VAC/50 A MACHINE WEIGHT: 30000 LB EQUIPPED WITH: -16 MEG -COORDINATE ROTATION AND SCALING -WORK AND TOOL PROBE -SPINDLE ORIENT -QUICK CODE -ENCLOSURE -FULL 4TH -THROUGH SPINDLE COOLANT -PROGRAMMABLE COOLANT -KEY SWITCH -AUXILIARY FILTER | ||
