| Stockcode | : | 660655 |
| Type | : | CNC Machining Centres |
| Subtype | : | Vertical |
| Manufacturer | : | HAAS |
| Model | : | VF-3/APC |
| Year | : | 2006 |
| Price | : | P.O.A. |
| Description | : | |
|

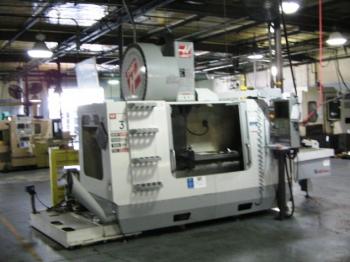

HAAS, VF-3/APC, 40" X, 20" Y, 25" Z, NEW: 2006
40 TOOLS - PALLET CHANGER - 30HP - PROBING SPECIFICATIONS TRAVELS X AXIS: 40 " Y AXIS: 20 " Z AXIS: 25 " SPINDLE NOSE TO TABLE (~ MIN): 4 " SPINDLE NOSE TO TABLE (~ MAX): 29 " TABLE LENGTH: 48 " WIDTH: 18 " T-SLOT WIDTH: 5/8 " T-SLOT CENTER DISTANCE: 3.15 " NUMBER OF STD T-SLOTS: 5 MAX WEIGHT ON TABLE (EVENLY DISTRIBUTED): 3500 LB SPINDLE MAX RATING: 30 HP MAX SPEED: 10,000 RPM MAX TORQUE: 75 FT-LB @ 1400 RPM DRIVE SYSTEM: DIRECT SPEED BELT DRIVE MAX TORQUE W/OPT GEARBOX: 250 FT-LB @ 450 RPM TAPER: CT/40 G BEARING LUBRICATION: AIR/OIL INJECTION COOLING LIQUID COOLED FEEDRATES RAPIDS ON X: 1000 IN/MIN RAPIDS ON Y: 1000 IN/MIN RAPIDS ON Z: 1000 IN/MIN MAX CUTTING: 650 IN/MIN AXIS MOTORS MAX THRUST X: 2550 LB MAX THRUST Y: 2550 LB MAX THRUST Z: 4200 LB TOOL CHANGER TYPE: SIDE MOUNT CAPACITY: 40 MAX TOOL DIAMETER (FULL): 3.5 " MAX TOOL WEIGHT: 12 LB TOOL-TO-TOOL (AVG): 4.2 SEC CHIP-TO-CHIP (AVG): 4.5 SEC ACCURACY POSITIONING (±): 0.0002 " REPEATABILITY (±): 0.0001 " GENERAL AIR REQUIRED: 4 SCFM, 100 PSI COOLANT CAPACITY: 55 GAL POWER (OPTIONS MAY INCREASE REQUIREMENT): 195-260 VAC/50 A; 354-488 VAC/30 A MACHINE WEIGHT: 12500 LB EQUIPPED WITH -30HP / 10,000 RPM -2-SPEED GEARBOX -THROUGH SPINDLE COOLANT -40 TOOL SIDE MOUNT TC -PALLET CHANGER -PROGRAMMABLE COOLANT -CHIP AUGER -VQCPS PROBING -LARGE CAPACITY 80 GALLON CLNT TANK -KEYSWITCH MEMORY LOCK FOR FRONT PENDANT -4TH READY -RTY/APC CBL RETRACT KIT -AUX FILTER FOR TSCHP | ||
