| Stockcode | : | 660538 |
| Type | : | CNC Lathes |
| Subtype | : | 2-Axis |

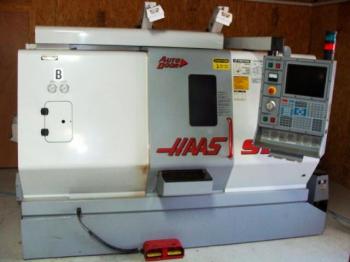

| Manufacturer | : | HAAS |
| Model | : | SL-20T |
| Year | : | 2000 |
| Price | : | P.O.A. |
| Description | : | |
|
SPECIFICATIONS
SWING DIAMETER: -OVER FRONT APRON: 23.0 " -OVER CROSS SLIDE: 9.5 " CAPACITIES: -CHUCK SIZE: 8.3 " -MAX CUTTING DIAMETER : 10.3 " -MAX CUTTING LENGTH: 20.0 " -MAX CUTTING LENGTH W/STD WORKHOLDING: 19.0 " -BAR CAPACITY: 2.0 " -BETWEEN CENTERS: 24.0 " TRAVELS & FEEDRATES: -X AXIS: 8.45 " -Z AXIS: 20.00 " -RAPIDS ON X: 1200 IN/MIN -RAPIDS ON Z: 1200 IN/MIN -MAX THRUST X: 2400 LB -MAX THRUST Z: 3700 LB SPINDLE: -SPINDLE NOSE: A2-6 -MAX RATING: 20 HP -MAX SPEED: 4000 RPM -MAX TORQUE: 154 FT-LB @ 650 RPM -SPINDLE BORE Ø 3.00 " -DRAW TUBE BORE Ø 2.06 -5,000 RPM/30-HP (OPT) -MAX TORQUE 120 FT-LB @1400 RPM -7,000 RPM/20-HP (OPT) -MAX TORQUE 80 FT-LB @1400 RPM WITH TAILSTOCK OPTION: -TRAVEL : 20 " -TAPER : MT4 -THRUST (MAX): 1500 LB -THRUST (MIN): 300 LB TURRET : -NUMBER OF TOOLS : 10 -OD VS ID TOOLS ANY COMBINATION -TOOL SIZE (OD TURNING): 1.00 " -INDEX TIME (ONE TOOL): 1 SEC -BORING BAR REAR CLEARANCE (FROM TURRET FACE): 4.37 " LIVE TOOLING: -MAX RATING: 5 HP -MAX SPEED: 3000 RPM -MAX TORQUE: 132 IN-LB -TORQUE (PEAK W/HT OPTION): 195 IN-LB -DRIVE RATIO: 1:1 -BRAKE CLAMP FORCE: 1000 LB -BRAKE DIAMETER : 13.25 " -TOOLING : STANDARD VDI 40 ACCURACY: S.A.E. METRIC -POSITIONING (±): 0.0002 " -REPEATABILITY: 0.0001 " GENERAL: -AIR REQUIRED: 4 SCFM, 100 PSI -COOLANT CAPACITY: 40 GAL -POWER (OPTIONS MAY INCREASE REQUIREMENT): 195-260 VAC/50 A -354-488 VAC/30 A 195-260 VAC/50 A -354-488 VAC/30 A -MACHINE WEIGHT: 9000 LB EQUIPPED WITH -LIVE TOOLING OPTION -C-AXIS -TAILSTOCK -AUTO DOOR -CHIP AUGER SYSTEM -3.5" FLOPPY DISK DRIVE -QUICK CODE PROGRAM SYSTEM -1 MEGABYTE PROGRAM MEMORY -BARFEED INTERFACE -SPINDLE ORIENTATION -PARTS CATCHER -HIGH INTENSITY LIGHTING | ||
