| Stockcode | : | 659255 |

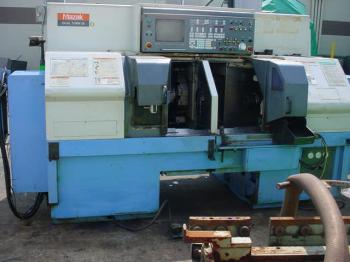

| Type | : | CNC Lathes |
| Subtype | : | Turning Centres |
| Manufacturer | : | MAZAK |
| Model | : | DUAL TURN-20 |
| Year | : | 1996 |
| Price | : | P.O.A. |
| Description | : | |
|
Chuck Size 8" (2)Hydraulic
Max Diameter Bar Capacity 2" Max Swing Over Bed 12.6" Max Turning Diameter (for Transfer) 12.6" / 10" Distance Between Spindles 49.21" Main Motor 20 / 15 HP Spindle Speed 35 - 4750 RPM Tools 12 (2) Spindle Bore 2.4" Spindle Nose A2-6 Rapid Traverse Rates (X / Z) 1200 / 1300 IPM X-Axis Travel 9.06" Z-Axis Travel 19.69" Turret Index (Single / Full Step) 0.5 / 1.4 Seconds Machine Dimensions (L x W x H) 159.3" x 107" x 80.3" Machine Weight 13,200 lbs. EQUIPPED WITH Conversational Programming Part/Tool Path Graphics Twin Spindles & Twin Turrets 12" Monochrome CRT (2) ATS B60 Collet Chucks Coolant Thru Spindle (L & R) Auto Load & Unload Hands Programmable Tool Eyes (L & R) Chip Conveyor (Rear Exit) Auto Chuck Open / Close Programmable Workpiece Transfer between Spindles Center Partition Operation End Worklight (Three Colors) | ||
| View all |
|
MAZAK (114) DUAL TURN-20 (1) CNC Lathes (382) Turning Centres (337) |
United States
