| Stockcode | : | 659233 |
| Type | : | CNC Lathes |
| Subtype | : | Turning Centres |

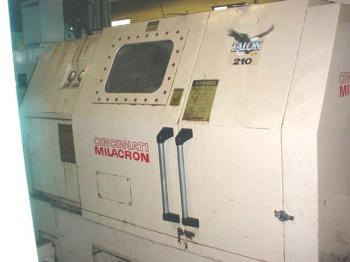

| Manufacturer | : | CINCINNATI |
| Model | : | TALON 210 |
| Year | : | 1992 |
| Price | : | P.O.A. |
| Description | : | |
|
CNC Menu-driven programming in plain language.
Specifications: Swing over Bed ..20.86" Swing Over Carriage ..11.8" Distance Between Centers ..24" Machinable Center Distance 23.6 Maximum Spindle RPM with 8" chuck ...45-4500 Spindle RPM with 10" chuck .45-4000 Spindle Hole .2.44" Bar Capacity .2" Turret Stations ..12 Spindle Motor ..20 HP Spindle Nose A2-6 Tailstock Quill Diameter ..2.953" Tailstock Position .21.6" Maximum Tailstock Thrust 1320 lbs Feed Range - Infinitely Variable .,,,,,,, .1 to 200 IPM Rapid Traverse ..600 IPM Cross Travel - X-Axis ...6.8" Longitudinal Travel - Z-Axis 23.6" Dimensions .. .127" L x 86" W x 73" H Weight ..10,600 lbs Equipped With: 10" hydraulic Chuck Chip Pan and Coolant Programmable Tailstock Tool Setting Probe | ||
