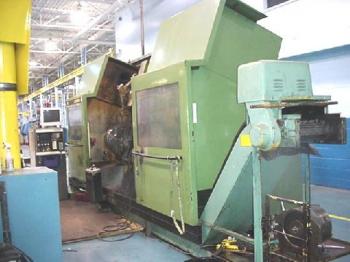

| Stockcode | : | 659231 |
| Type | : | CNC Lathes |
| Subtype | : | Turning Centres |
| Manufacturer | : | BOEHRINGER |
| Model | : | 710 |
| Year | : | 1982 |
| Price | : | P.O.A. |
| Description | : | |
|
Specifications:
Height of Centers......................................................360 mm Swing over bed.........................................................710 mm over carriage...................................................450 mm cross traverse.................................................495 mm turning length type L ................2000 mm Spindle nose w/centering taper & bayonet locking to DIN 55022..................................................11 mm Spindle bore diameter...............................................103 mm Spindle diameter in front bearing..............................150 mm Tailstock quill, type L..................................................125 mm O.D............................................................................200 mm Main Drive: D.C. motor SCR Regulated Driving power................................................................25-50 Torque at spndl at driving power . 25 KW..2400 mm Speed range................................................8-2000- 11-2800 Progression ratio.............................................................1.12 Number of gear ranges (overlapping) .............4 Number of speeds per range.............................................31 Number of speeds, total.....................................................49 Speed overide steps..........................................................+2 Feed Drives: 3 PulseD.C. Motor SCR Regulates Driving Power..............................................................4.5 kw Feed rate...................................................0, 1-6000 mm/min Straverse speed, max..........................................................6 Tooling system: Drum Turret Univ. Turret Cross section of tool shank . 32 x 25 32 x 25 Cutting force, permissible 16,000 16,000 Repeatability 2 2 Indexing Time (f/post/post) 2.5 2.5 No. of tool positions (VDI S 425) 12 12 Boring Bar Diameter 60 60 | ||
