| Stockcode | : | 658375 |
| Type | : | CNC Lathes |
| Subtype | : | Turning Centres |
| Manufacturer | : | DOOSAN |

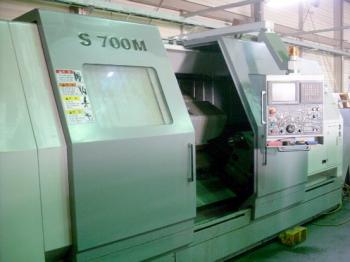

| Model | : | INFRACORE PUMA S700M |
| Year | : | 2007 |
| Price | : | P.O.A. |
| Description | : | |
|
Max. Swing 35.82" Max. Turning Dia. (Shaft work) 27.56" Max. Turning Dia. (chucking) 35.82" Distance Between Centers 72.83" Spindle Bore Dia. 5.2" X-Axis Travel 15.16" Z-Axis Travel 70.87" Spindle Nose A1-11" Spindle Speeds 20 - 2,000 RPM Spindle Increments .001 n/c contouring Rotary Tool Speed 4000 Rotary Tool Horsepower 17.6 hp ac Gear Ranges 2 Spindle Torque 1,642 ft-lbs Turret Configuration 12 STATION VDI Turret Clamping Force 22,100 LBS. Rapid Traverse 400/630 IPM Tail Stock Dia. 6.3" Tail Stock Quill Stroke 5.9" Programable T.S. Body Tow Along(programmable Quill) Main Motor 50/40 hp ac MACHINE WEIGHT 34,000 LBS. Equipped With: FANUC 0iTC CNC CONTROL (4) MILLING HEADS 24" 3-JAW HYDRAULIC CHUCK SYSTEM CHIP CONVEYOR ALL AVAILABLE MANUALS ALL AVAILABLE TOOL HOLDERS | ||
| View all |
|
DOOSAN (19) INFRACORE PUMA S700M (1) CNC Lathes (382) Turning Centres (337) |
United States
