| Stockcode | : | 658367 |
| Type | : | CNC Lathes |
| Subtype | : | Turning Centres |
| Manufacturer | : | DAEWOO |

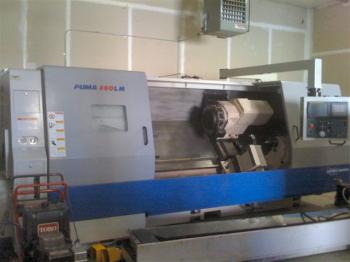

| Model | : | PUMA 400LMB |
| Year | : | 2006 |
| Price | : | P.O.A. |
| Description | : | |
|
Swing over bed 30.3" Swing over carriage 23.2" Distance between centers 86" Maximum turning diameter 22.0" Maximum turning length 79.8" Spindle speed 20 - 2,000 RPM Spindle nose ASA-A2-11 Spindle bore diameter 5.20" AC Spindle Motor (30 min.) 50 HP Spindle speed ranges 2 Minimum "C" axis programming angle (degrees) .001 Rapid traverse rate (RPM) 100 X axis travel 14.3" Z axis travel B 84.8" Angle of slant bed 45 degrees X axis guideway span 14.2" Z axis guideway span 16.5" Tailstock guideway span 11.8" X axis rapid traverse rate 550 IPM Z axis rapid traverse rate 710 IPM X / Z axis ball screw diameters 1.6" / 2.0" Number of tools 12 Number of live tool positions 12 Turning tool shank size 1.0" Boring bar diameter 2.5" Turret index time (next station) 0.25 sec. Turret index time (180º opposing stations) 2.1 secs. Tool selection Bi-directional Rotating tool RPM 3,000 Rotating tool HP 10 Rotating tool torque 70.5 ft-lbs. Rotating tool type BMT 75 Rotating tool collet type ER40 Maximum collet ID 1.0" Tailstock quill diameter 4.7" Tailstock quill stroke (programmable) 4.7" Tailstock body stroke (programmable) 80.7" Tailstock spindle taper (built-in type) MT #5 Coolant pump pressure 65 PSI Coolant pump motor 1.2 HP Coolant tank capacity 69 gal. Hydraulic tank capacity 2.6 gal. Floor space with chip conveyor 260" x 99" Approx. Weight 23,670 lbs Equipped with: - Fanuc 21iTB CNC Control - 18" 3-Jaw Kitagawa Chuck (4.62" hole/.21" jaw stroke) - Self Centering Hydraulic Steady rest with 1.38"-9.64" Capacity Included with the machine: Tooling: Complete set of tool holders for turret - 2 pcs. Eppinger Preci-Flex ready X-axis (straight) milling heads (PN: 7.071.810) - 1 pc. Eppinger Preci-Flex ready Z-axis (angular) milling head (PN: 7.071.835) - 1 pc. Eppinger Preci-Flex ER40 collet chuck adapter (PN: 4001-0091) - 1 pc. Eppinger Preci-Flex 1" Weldon type end mill holder (PN: 4003-0120) - 1 pc. Eppinger Preci-Flex shell mill adapter with 3/4" arbor (PN: 4007-0241) - 3 pcs I.D. tool holders - 1 pc I.D. tool holder w/ U drill cap - 6 pcs. straight shank 2.5" OD bushings (5/8", 3/4", 1", 1-1/4", 1-1/2", and 2" I.D.) - 5 pcs. OD turning tool holders | ||
| View all |
|
DAEWOO (20) PUMA 400LMB (1) CNC Lathes (382) Turning Centres (337) |
United States
