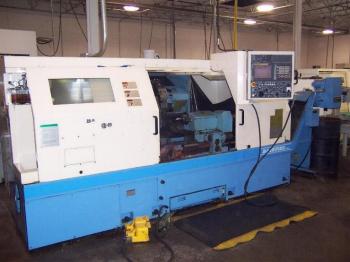

| Stockcode | : | 658365 |
| Type | : | CNC Lathes |
| Subtype | : | Turning Centres |
| Manufacturer | : | DAINICHI |
| Model | : | F-30/1250 |
| Year | : | 1994 |
| Price | : | P.O.A. |
| Description | : | |
|
Max. Swing 21.7" Max. Turning Diameter 18.5" Max. Turning Dia. (Shaft work) 13.825" Max Shaft Length 49.2 Spindle Bore Dia. 3.58" Spindle Bar Capacity 3.07" Load Capacity Between Centers 1320 LBS. X-Axis Travel 7.87" Z-Axis Travel 52" Spindle Nose A2-8" Spindle Speeds 30-3000 RPM Turret Configuration 12 Turret Clamping Force 7,055 LBS. Rapid Traverse X / Z 472/590 IPM Tail Stock Dia. 4.33" Tail Stock Quill Stroke 4.7" Programable T.S. Body Standard Main Motor 25 HP AC MACHINE WEIGHT 13800 LBS. Equipped With: - FANUC 21iT CNC CONTROL - FULLY PROGRAMABLE BODY AND QUILL TAILSTOCK - 12" 3-JAW HYDRUALIC CHUCK - TOOL PRESETTER - CHIP CONVEYOR - ALL AVAILABLE MANUALS - ALL AVAILABLE TOOL HOLDERS
| ||
