| Stockcode | : | 658363 |
| Type | : | CNC Lathes |
| Subtype | : | Turning Centres |

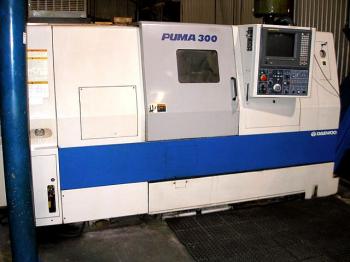

| Manufacturer | : | DAEWOO PUMA |
| Model | : | 300C |
| Year | : | 1999 |
| Price | : | P.O.A. |
| Description | : | |
|
SWING OVER BED ...................... 23.0" SWING OVER SADDLE ................... 14.5" MAX. TURNING DIA. ................... 15.7" MAX. TURNING LENGTH ................. 25.6" DISTANCE BETWEEN CENTERS ............ 36" MAX. BAR WORK DIA. .................. 4" X-AXIS TRAVEL ....................... 11.1" Z-AXIS TRAVEL ....................... 26.8" SPINDLE SPEED ....................... 2800 RPM SPINDLE NOSE ........................ A2-11 SPINDLE BORE ........................ 4.53" TURRET INDEX TIME ................... 0.15 sec. OD TOOL SIZE ........................ 1" BORING BAR DIA. ..................... 2" RAPID TRAVERSE X/Z AXES ............. 800/945 IPM TAILSTOCK QUILL DIA. ................ 3.94" TAILSTOCK QUILL TRAVEL .............. 3.94" MAIN SPINDLE MOTOR .................. 35 HP APPROX FLOOR SPACE .................. 138" x 71" APPROX WEIGHT ....................... 13,400 LBS. EQUIPPED WITH: - SOLID BOX WAY CONSTRUCTION - FANUC 18TC CNC CONTROL w/RS232 PORT - AUTOMATIC TOOL PRESETTER - 12" 3-JAW HYD. CHUCK - 10 POSITION TURRET - PROGRAMMABLE TAILSTOCK BODY - CHIP CONVEYOR - 35 HP AC HI-TORQUE DIGITAL SPINDLE DRIVE MOTOR - ALL AVAILABLE TOOLHOLDERS - ALL AVAILABLE MANUALS - MACHINE IS WIRED 3/60/220 VOLT OPERATION *** NEW SPINDLE BEARINGS INSTALLED APRIL 2008 *** | ||
