| Stockcode | : | 658357 |

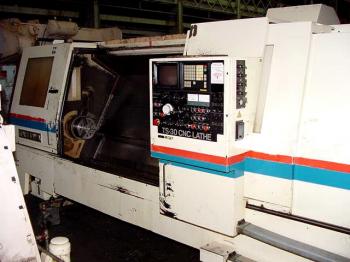

| Type | : | CNC Lathes |
| Subtype | : | Turning Centres |
| Manufacturer | : | TAKISAWA |
| Model | : | TS-30 |
| Year | : | 1986 |
| Price | : | P.O.A. |
| Description | : | |
|
MAX SWING ......................... 25" MAX SWING OVER CARRIAGE ........... 18.5" MAX TURNING DIAMETER .............. 15.75" MAX DISTANCE BETWEEN CENTERS ...... 79.28" SPINDLE BORE DIA .................. 3.26" SPINDLE NOSE ...................... A2-8" SPINDLE SPEEDS .................... 25-3000 RPM GEAR RANGES ....................... 2 TURRET CONFIGURATION .............. 12 STATION X-AXIS ............................ 8.865" Z-AXIS ............................ 80.9" RAPID TRAVERSE (X-AXIS) ........... 236 IPM RAPID TRAVERSE (Z-AXIS) ........... 472 IPM TAILSTOCK DIA ..................... 4.3" TAILSTOCK STROKE .................. 6.7" MAIN MOTOR ........................ 30 HP MACHINE WEIGHT .................... 19,000 LBS EQUIPPED WITH: FANUC 11T CNC CONTROL 10" 3-JAW HYDRAULIC CHUCK HYD. STEADY REST TAILSTOCK CHIP CONVEYOR ALL AVAILABLE TOOL HOLDERS ALL AVAILABLE MANUAL
| ||
| View all |
|
TAKISAWA (3) TS-30 (1) CNC Lathes (382) Turning Centres (337) |
United States
