| Stockcode | : | 658356 |
| Type | : | CNC Lathes |
| Subtype | : | Turning Centres |
| Manufacturer | : | MAZAK |

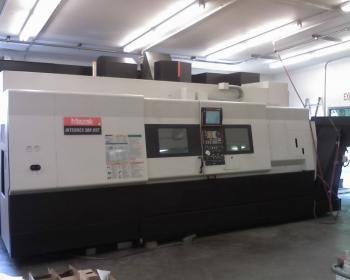

| Model | : | INTEGREX 300 III ST/1500 |
| Year | : | 2004 |
| Price | : | P.O.A. |
| Description | : | |
|
Max. Swing 33.5" Max. Swing Using Y-Axis 26"-33.5" Max Machining Dia 33.5" Max. Swing Over Lower Turret 16.5" Maximum Cutting Length 60" Spindle Bore 3.46" Spindle Nose A2-8 Max Bar Capacity 3.0" Spindle Speeds 4000 RPM Axis Travel C - Axis .0001 INCREMENTS X - Axis 24.8" Z - Axis 62.41" X2- Axis (lower turret) 9.06" Z2- Axis (lower turret) 60.2" Y - Axis +/- 4.53" B - Axis 225 degrees 5 DEGREE CLAMPING W - Axis (second spindle) 60.24" Second Spindle RPM 4000 RPM Spindle Nose A2-8 Spindle Bore (Second Spindle) 3.46" Bar Capacity 3" Second Spindle Min. Indexing .0001 degree Second Spindle Travel 60.2" Rapid Traverse Rates C - Axis 555 RPM X - Axis 1496 IPM Z - Axis 1496 IPM Y - Axis 1023 IPM B - Axis 555 RPM W - Axis 1181 IPM Min. Spindle Indexing (main Spindle) .001 DEGREE Tool Magazine Capacity 40 ATC CAPTO Lower Turret Positions 9 tool drum Max. Tool Dia. Adj. 3.54"/4.92" Max. Tool Length 15.75" \ Rotary Tools Spindle Nose CAPTO STYLE Rotary Tool Spindle Speed 12,000 RPM Rotary Tool Motor 25 HP Maximum Tool Weight 22 LBS. Z - Axis Thrust 3124 FT/LBS. Main Motor / Second Spindle 35 HP/AC 35 HP Equipped With MAZATROL PC FUSION 640MT PRO CNC CONVERSATIONAL CONTROL SIMILTANEOUS 5-AXIS PACKAGE 10" 3-JAW HYDRAULIC CHUCKS FRONT/REAR 12.1" COLOR SCREEN AUTOMATIC OPEN/CLOSE AUTOMATIC OPEN/CLOSE CONFIRMATION THREAD POINT COMPENSATION CYLINDRICAL INTERPOLATION POLAR CO-ORDINATE INTERPOLATION TOOL WEAR COMPENSATION TOOL EYE MEASUREMENT FOR UPPER AND LOWER TURRET MAZAK TORNADO TAPPING 48 ALPHANUMERIC CHARACTERS FOR PROGRAM NAME (MAZATROL) MAZATROL AND EIA/ISO PROGRAMMING TOOL LIFE MONITORING BACKGROUND TOOL PATH CHECK MILLING SPINDLE MULTI-ORIENT 8 FIGURE PROGRAM NUMBER (EIA) BARRIER PROTECTION MACHINING NAVI-MONITOR NETWORK LAN AND MOTEM PREPPED FOR FLASH AND MULTI C-AXIS MAIN SPINDLE DRIVE PACKAGE TOOL EYE AUTOMATIC FRONT AND SECOND SPINDLE HYDRAULIC PRESSURE INTERLOCK 213 COOLANT THRU UPPER SPINDLE C-AXIS .0001 DEGREE MAIN AND SECOND SPINDLE 40 CAPTO TOOL MAGAZINE 5 DEGREE INDEX COUPLING CLAMP MILLING SPINDLE SYNC. TAP Y-AXIS CONTROL MAIN AND 2ND SPINDLE SYNCHRONIZATION NINE POSITION LOWER TURRET CHUCK AIR BLAST 2ND SPINDLE B-AXIS .0001 DEGREE INCR. N/A CONTOURING CHIP CONVEYOR SIDE UPPER TURRET AIR BLAST ALL TOOLING ALL MANUALS | ||
