| Stockcode | : | 658352 |
| Type | : | CNC Lathes |
| Subtype | : | Turning Centres |

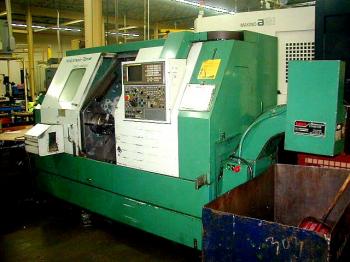

| Manufacturer | : | NAKAMURA-TOME |
| Model | : | TMC-300C |
| Year | : | 1994 |
| Price | : | P.O.A. |
| Description | : | |
|
Maximum Swing: 19.68" Maximum Swing Over Carriage: 12.99" Maximum Turning Diameter: 12.99" Maximum Turning Length: 21.65" Distance between centers: 29.08" Spindle Bore: 3.34" Bar Capacity: 2.79" X-Axis Travel: 8.75" Z-Axis Travel: 25" Spindle Nose: A1-8 Spindle Speed: 35-3500 RPM Tool Capacity: 12 STATION Tool Size: 1" ID Turning Tool Mounting Bore Dia.: 1.57" Rapid Traverse X/Z: 630/944 IPM Main Motor: 20/15 HP Approx. Weight: 10,350 LBS Equipped with: - Fanuc 16TA CNC Control - 10" 3-Jaw Hydraulic chuck - 12 Position Turret - Tailstock - Chip Conveyor - Barfeed Interface - All Available Manuals - All Available Tooling
| ||
| View all |
|
NAKAMURA-TOME (2) TMC-300C (1) CNC Lathes (382) Turning Centres (337) |
United States
