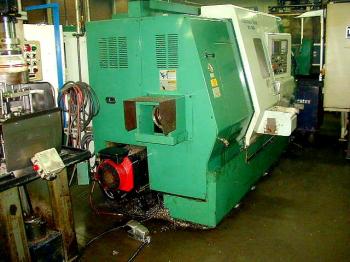

| Stockcode | : | 658350 |
| Type | : | CNC Lathes |
| Subtype | : | Turning Centres |
| Manufacturer | : | NAKAMURA-TOME |
| Model | : | SC-300 |
| Year | : | 1998 |
| Price | : | P.O.A. |
| Description | : | |
|
Specifications Max. Swing ....................... 22.04" Swing Over Carriage .............. 17.71" Distance Between Centers ......... 28.09" Max. Machining Diameter .......... 13.77" Max. Machining Length ............ 23.62" Spindle Hole ..................... 3.34" Max. Bar Capacity ................ 2.79" Spindle Nose ..................... A1-8" Spindle Speeds ................... 35-3500 RPM Number Of Turret Position ........ 12 X - Axis Travel .................. 8.75" Z - Axis Travel .................. 25" Rapid Traverse X/Z Axes .......... 629/787 IPM Tailsrock Quill Diameter ......... 3.54" Tailstock Quill Stroke ........... 3.93" Tailstock Travel ................. 15.74" Main Motor ....................... 20/15 HP AC Machine Weight ................... 10,000 LBS. EQUIPPED WITH: - FANUC 21TB CNC CONTROL - 10" 3-JAW HYDRAULIC CHUCK - 12 POSITION TURRET - TAILSTOCK WITH PROGRAMMABLE QUILL - CHIP CONVEYOR - BARFEED INTERFACE - ALL AVAILABLE MANUALS - ALL AVAILABLE TOOL HOLDERS | ||
