| Stockcode | : | 658343 |
| Type | : | CNC Lathes |
| Subtype | : | Turning Centres |
| Manufacturer | : | GILDEMEISTER |

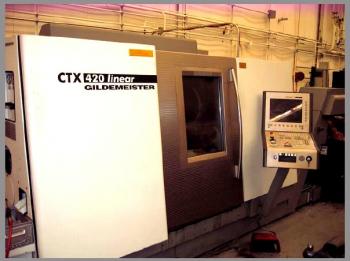

| Model | : | CTX 420 LINEAR V3 |
| Year | : | 2002 |
| Price | : | P.O.A. |
| Description | : | |
|
TECHNICAL DATA: MAX. SWING DIAMETER .................... 26.8" SWING DIAMETER ABOVE CROSS GUIDEWAY .... 22.2" CROSS TRAVEL, X ........................ 10.2" LONGITUDINAL TRAVEL, Z ................. 25.0" BAR CAPACITY ........................... 2.6" DRIVE POWER (40/100%DC) ................ 49.6/33.5 HP AC SPINDLE SPEED RANGE .................... 20-5,000 RPM RAPID TRAVERSE RATE X/Z AXES ........... 2362/590 IPM NUMBER OF TOOL STATIONS ................ 12 DRIVEN TOOL STATIONS ................... 12 DRIVE POWER OF DRIVEN TOOL (40%DC) ..... 16.4 HP MAX. ROTATIONAL SPEED OF DRIVEN TOOL ... 4,500 RPM TAILSTOCK STROKE ....................... 22.8" TAILSTOCK QUILL ........................ MK 5 APPROX. WEIGHT ......................... 14,330 LBS. EQUIPPED WITH: - SIEMENS 840D CNC CONTROL WITH SHOP TURN - 8" 3-JAW HYD. CHUCK - 12 POSITION VDI TURRET - PARTS CATCHER - TAILSTOCK - CHIP CONVEYOR - BARFEED INTERFACE - 7 ID TOOLHOLDERS - 2 X-AXIS LIVE TOOLHOLDERS - 3 Z-AXIS LIVE TOOLHOLDERS OUT OF A GOVERNMENT RESEARCH LAB POWER ON HOURS: 5,570 SPINDLE ON HOURS: 1,699 | ||
