| Stockcode | : | 658342 |
| Type | : | CNC Lathes |
| Subtype | : | Turning Centres |

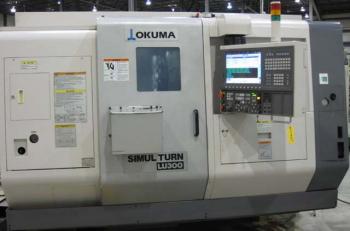

| Manufacturer | : | OKUMA |
| Model | : | LU300BB |
| Year | : | 2007 |
| Price | : | P.O.A. |
| Description | : | |
|
RUNNING HOURS 5,948 (OPERATING 1,860 NON-OPERATING 4,088) CUTTING - 1,264 SPINDLE - 1,595 NO OPERATOR 1,335 SPECIFICATIONS NUMBER OF CONTROLLED AXES: 4 SWING OVER BED: 20.87" SWING OVER CARRIAGE: 16.14" DISTANCE BETWEEN CENTERS: 23.62" MAX. TURNING DIAMETER X LENGTH: 14.57" X 23.62" SPINDLE SPINDLE DIAMETER: 4.72" SPINDLE NOSE TYPE: A2-8 THROUGH-SPINDLE HOLE: 3.14" BAR CAPACITY: 2.75" (APPROX.) NUMBER OF SPINDLE SPEED RANGES: INFINITELY VARIABLE X AUTO 2 RANGES SPINDLE SPEED: 38 – 3,800 RPM CARRIAGE (Z-AXIS) AXIS TRAVEL (UPPER): 25.20" AXIS TRAVEL (LOWER): 24.21" FEEDRATE: 0.00001 – 39.37 IPR RAPID FEEDRATE: 984.25 IPM CROSS SLIDE (X-AXIS) AXIS TRAVEL (UPPER): 7.28" + 2.95" AXIS TRAVEL (LOWER): 4.13" + 1.38" FEEDRATE: 0.00001 – 39.37 IPR RAPID FEEDRATE: 787.40 IPM TURRET UPPER: V12 LOWER: V8 NUMBER OF TOOLS: 20 TOOL SIZE OD TURNING TOOLS: 1" ID TURNING TOOLS: 1.57" TAILSTOCK SPINDLE DIAMETER: 3.54" SPINDLE TAPER HOLE: MT #5 SPINDLE TRAVEL: 4.72" MOTOR SPINDLE DRIVE MOTOR: 20/30 HP CARRIAGE FEED (Z-AXIS, UPPER): 5.3 HP CARRIAGE FEED (Z-AXIS, LOWER): 5.3 HP CROSS SLIDE FEED (X-AXIS, UPPER): 5.3 HP CROSS SLIDE FEED (X-AXIS, LOWER): 4.4 HP HYDRAULIC POWER UNIT PUMP: 3 HP GUIDEWAY LUBRICATION PUMP: 0.024 HP COOLANT PUMP: 1.067 HP MACHINE HEIGHT: 85.67" FLOOR SPACE REQUIRED: 155.51" X 89.76" NET WEIGHT: 18,040 LBS ELECTRICS: 440V, 3 PH, 60 CYCLE EQUIPPED WITH OKUMA OSP-P200L CONTROL BIG BORE WITH 10" CHUCK PACKAGE TAILSTOCK WITH LIVE CENTER CHIP CONVEYOR TOUCHSETTER "M" PARTS CATCHER MISCELLANEOUS TURRET TOOLHOLDERS | ||
| View all |
|
OKUMA (40) LU300BB (1) CNC Lathes (382) Turning Centres (337) |
United States
