| Stockcode | : | 658341 |

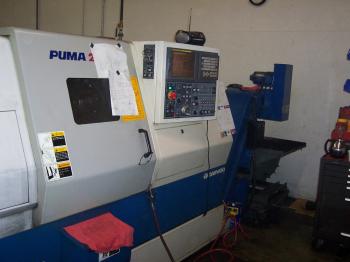

| Type | : | CNC Lathes |
| Subtype | : | Turning Centres |
| Manufacturer | : | DAEWOO PUMA |
| Model | : | 230MC |
| Year | : | 2002 |
| Price | : | P.O.A. |
| Description | : | |
|
SWING OVER BED .................... 21.7" SWING OVER SADDLE ................. 15.4" MAX. TURNING DIAMETER ............. 11.4" MAX. TURNING LENGTH ............... 18.8" X-AXIS TRAVEL ..................... 8.1" Z-AXIS TRAVEL ..................... 22.8" SPINDLE SPEED MAX. ................ 3500 RPM SPINDLE NOSE ...................... A2#6 MAX. BAR CAPACITY ................. 3.03" C-AXIS INDEX ANGLE ................ 0.001 DEG. SPINDLE MOTOR ..................... 20HP TURRET TOOL STATIONS .............. 12 OD TOOL SIZE ...................... 1" BORING BAR DIAMETER ............... 1.5" MILLING SPINDLE SPEED ............. 6,000 RPM RAPID TRAVERSE X/Z ................ 945/1200 IPM TAILSTOCK QUILL DIA. .............. 3" TAILSTOCK QUILL TRAVEL ............ 3.15" APPROX. WEIGHT .................... 9,500 LBS. APPROX. DIMENSIONS ................ 160" x 66" x 72" EQUIPPED WITH: - FANUC 18iT CNC CONTROL - 10" 3-JAW HYD. CHUCK - AUTOMATIC TOOL SETTER - PROGRAMMABLE PARTS CATCHER - 12 POSITION TURRET - TAILSTOCK - CHIP CONVEYOR | ||
