| Stockcode | : | 658340 |
| Type | : | CNC Lathes |
| Subtype | : | Turning Centres |
| Manufacturer | : | IKEGAI |

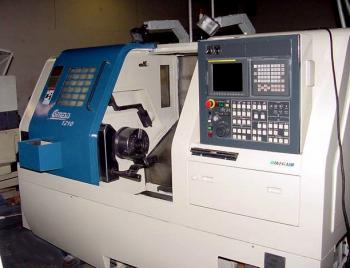

| Model | : | GENESIS 1210 |
| Year | : | 2000 |
| Price | : | P.O.A. |
| Description | : | |
|
SWING........................ 21.85" TURNING DIAMETER............. 11.81" TURNING LENGTH............... 21.65" SPINDLE TAPER................ A2-8 SPINDLE SPEEDS............... 35 - 3500 RPM SPINDLE MOTOR................ 25 HP SPINDLE BORE DIAMETER........ 3.62" BAR CAPACITY................. 2.75" RAPID TRAVERSE............... 737 IPM TURRET CONFIGURATION......... 12 POSITION X-AXIS TRAVEL................ 6.10" Z-AXIS TRAVEL................ 22.44" WEIGHT ALLOWABLE CHUCKING.... 441 LBS WEIGHT ALLOWABLE SHAFT WORK.. 1,102 LBS APPROX. DIMENSIONS........... 126" X 69" X 71"H APPROX. WEIGHT............... 11,795 LBS EQUIPPED WITH: - FANUC 21iTA CNC - 10" 3-JAW HYD. CHUCK - LIFT UP CHIP CONVEYOR - TOOL PRESETTER - PARTS CATCHER - PROGRAMMABLE TAILSTOCK - ALL AVAILABLE TOOLHOLDERS - ALL AVAILABLE MANUALS | ||
