| Stockcode | : | 658332 |
| Type | : | CNC Lathes |
| Subtype | : | Turning Centres |
| Manufacturer | : | CINCINNATI |

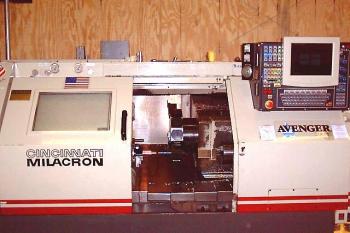

| Model | : | MILACRON AVENGER 200MS |
| Year | : | 1995 |
| Price | : | P.O.A. |
| Description | : | |
|
Cincinnati 850SX CNC 8" Chuck on main spindle 6" Chuck on Sub-Spindle 12 LIVE TOOLS , 8 Axial, 4 Radial Standard Tool Holders Full C-axis on main & sub-spindle Vibration Sensor for main spindle SMW SPACESAVER 2000 AUTO BARFEED "Step Up" Transformer 208 -460v Chip Conveyor Tool Probe Specifications: Max. Turning Diameter 10.39" Swing Over Bed 23.54" Swing Over Cross Slide 10.55" Center Distance 20.79" TURRET: X-Cross 10.39 Z-Longitud 20.87" Ball Screw Diameter 1.30" Tool Positions 12 (6 Live , 6 Manual ) SPINDLE: Bar Capacity 2" (Round) Speed Min - Max RPM 30 - 5000 RPM Spindle Nose A2-6 Spindle Drive Motor 25 HP Spindle Bore 3.15" SUB SPINDLE: Max Speed 5000 RPM Spindle Drive 10 HP Dimensions, approx: 128" x 70" x 72" Weight, approx: 11,500 lbs | ||
